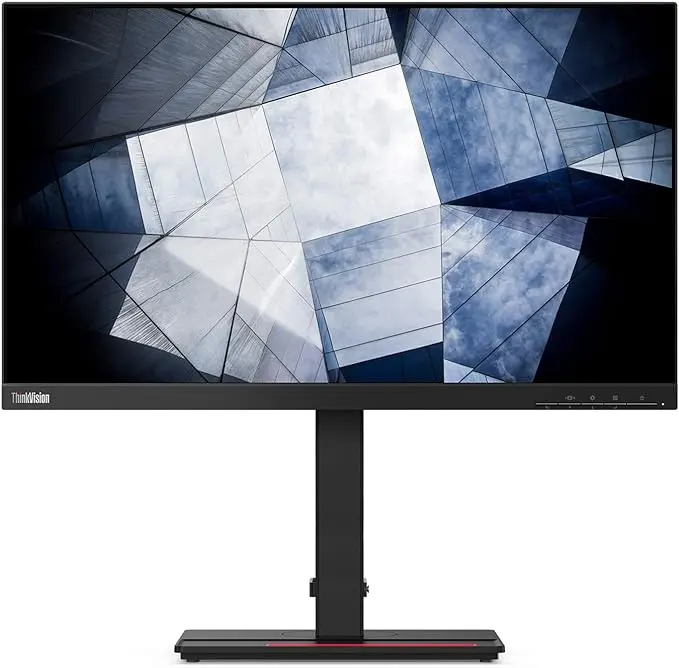

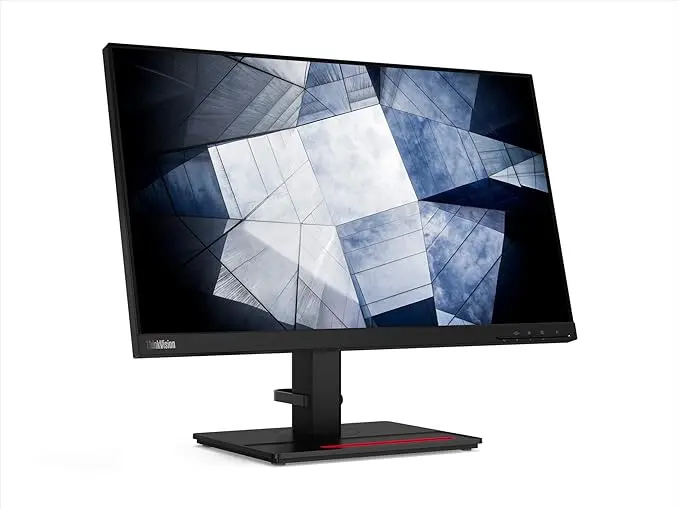

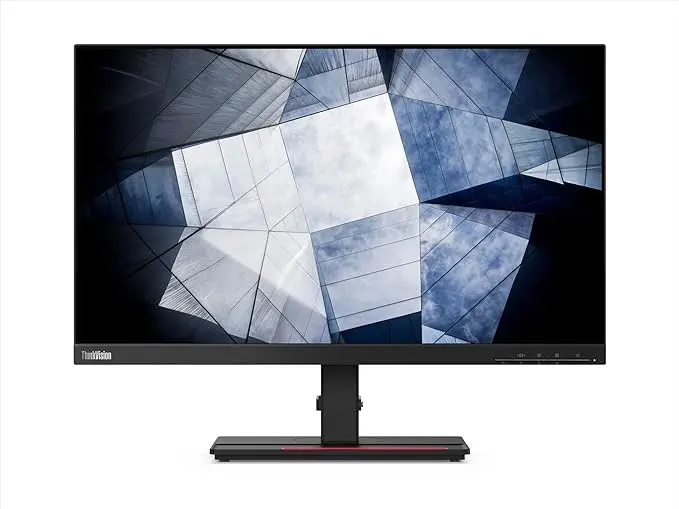

Lenovo ThinkVision P24h-20 LED display 60,5 cm (23.8") 2560 x 1440 pixels Quad HD

Monitor Specifications

Dimensions
Depth
205 mm (8.07 in.)

Height
570.5 mm (22.46 in.)

Width
540 mm (21.25 in.)

VESA mount
Supported
100 mm x 100 mm (3.94 in. x 3.94 in.)

Stand
Tilt
Range: -5° ~ 35°

Viewable image size
604.04 mm (23.8 in.)

Maximum height
296.35 mm (11.67 in.)

Maximum width
526.85 mm (20.74 in.)

Pixel pitch
0.2058 mm (0.01 in.)

Power input
Supply voltage
100-240V AC

Max supply current
1.5 A

Power consumption

Note: Power consumption figures are for the monitor and the power supply combined

Note: Typical power
consumption is tested under
OSD default setting
Normal operation
<132 W (max)

<23 W (typical)

Standby/Suspend
<0.5 W (W/O USB C)

Off

<0.3W at 100VAC and 240VAC

Video input(DP)
Interface
DP

Input signal
VESA TMDS (Panel Link™)

Horizontal addressability
2560 pixels (max)

Vertical addressability
1440 lines (max)

Clock frequency
300 MHz

Video input(HDMI)
Interface
HDMI

Input signal

VESA TMDS (Panel Link™)/HDMI

Horizontal addressability
2560 pixels (max)

Vertical addressability
1440 lines (max)

Clock frequency
300 MHz

Communications
VESA DDC/CI

Supported Display Modes
Horizontal frequency

Vertical frequency

Native Resolution
30 kHz - 114 kHz

48 Hz - 75 Hz

2560 x 1440 at 60 Hz

Temperature
Operating
0° to 40° C (32° to 104° F)

Storage

-20 to 60° C (-4° to 140° F)

Shipping

-20 to 60° C (-4° to 140° F)

Humidity
Operating
10% to 80% non-condensing

Storage

5% to 95% non-condensing

Shipping

5% to 95% non-condensing
