HP Z8 G5 Workstation
The HP Z8 G5 is the pinnacle of desktop computing, designed for workflows that demand extreme core counts, massive memory bandwidth, and elite-tier graphical processing. This dual-socket powerhouse features two Intel Xeon Silver 4410Y processors and the flagship NVIDIA RTX 6000 Ada Generation GPU. Whether you are performing real-time 8K video editing, training complex AI models, or running massive structural simulations, the Z8 G5 provides the industrial-grade stability and raw power required to eliminate bottlenecks.
Key Product Features
•
Dual Xeon “Sapphire Rapids” Muscle: Driven by Two Intel® Xeon® Silver 4410Y processors. With 12 cores and 24 threads per CPU, this system delivers a massive 24 physical cores and 48 logical threads, perfect for heavy multi-threaded rendering and parallel computing.
•
Flagship NVIDIA RTX 6000 (24GB): Equipped with the NVIDIA RTX 6000 Ada Generation GPU. Featuring 24GB of high-speed GDDR6 VRAM, this card is the gold standard for AI development, deep learning, and ultra-high-end 3D rendering in software like Redshift, Octane, and V-Ray.
•
Next-Gen DDR5 ECC Memory: Outfitted with 64GB of DDR5-4800 MHz RAM. The move to DDR5 significantly increases data throughput, while the Error-Correcting Code (ECC) ensures the system remains stable during multi-day computational tasks.
•
Dual-Tier Enterprise Storage: Includes a 1TB PCIe Gen 4 NVMe SSD for lightning-fast system response and a massive 4TB Enterprise-grade HDD for long-term project storage and data archives.
•
Expansion Without Limits: The Z8 G5 chassis is built for the future, featuring PCIe Gen 5 slots and support for up to 1TB of total RAM, allowing you to scale the machine as your projects grow in complexity.
•
World-Class Security: Protected by HP Wolf Security for Business, ensuring hardware-enforced protection from the BIOS level up to the operating system.
HP Z8 G5 Dual Workstation Technical Specifications
Feature
Specification
Processor
2x Intel® Xeon® Silver 4410Y (2.0 GHz base, up to 3.9 GHz Turbo, 12 Cores each)
Total Cores / Threads
24 Cores / 48 Threads
Graphics
NVIDIA RTX 6000 Ada Generation (24 GB GDDR6 Dedicated)
Memory (RAM)
64 GB DDR5-4800 MHz ECC Registered (16 DIMM Slots)
Primary Storage
1 TB HP Z Turbo Drive PCIe® NVMe™ SSD
Secondary Storage
4 TB 7200 rpm SATA Enterprise HDD
Chipset
Intel® C741
Networking
2x 10GbE Integrated LAN ports
I/O Ports (Front)
4x USB Type-A 5Gbps (Optional USB-C), Headphone/Mic Combo
I/O Ports (Rear)
6x USB Type-A 5Gbps, 2x RJ-45 (10GbE), Audio In/Out
Power Supply
1125W / 1450W 90% Efficient (Internal)

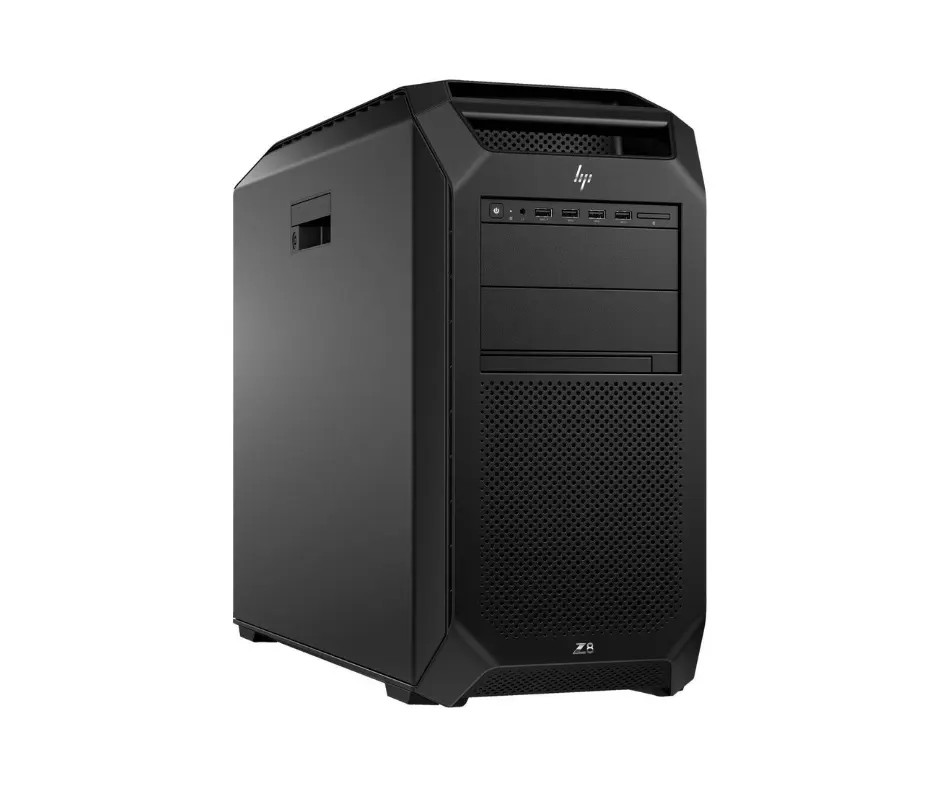

Front View Ports & Slots
- Power Button
- Combo audio jack
- USB 3 Type-A (x4) (5 Gbps signaling rate) (1 charging)
- Front handle
- Media Card Reader
- Optional external bays

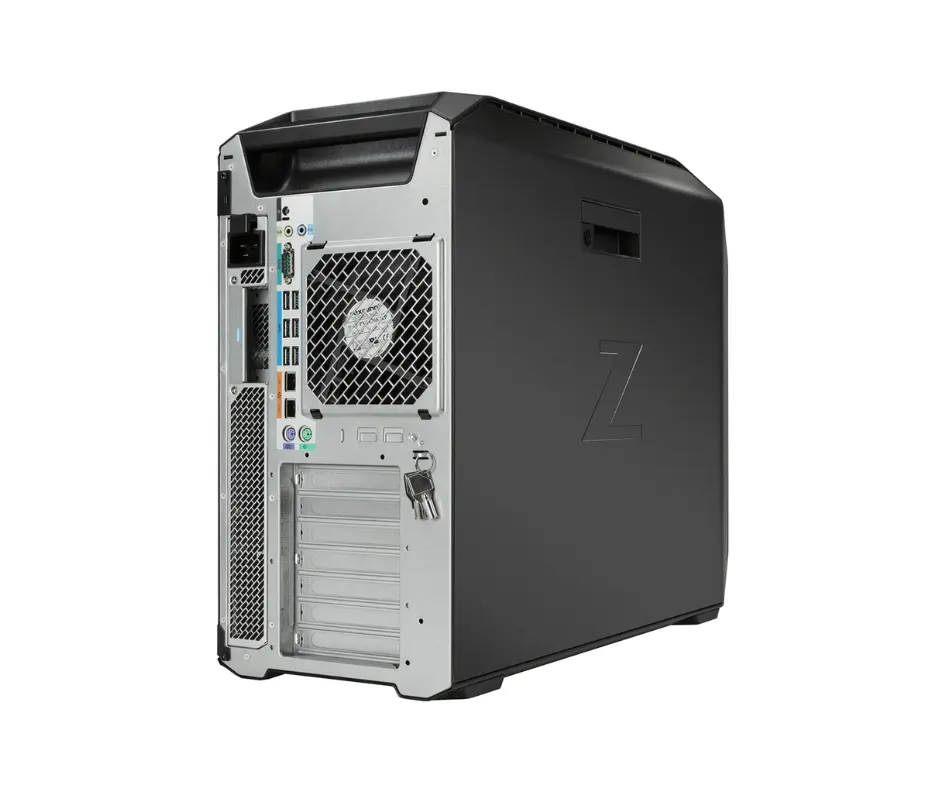

Rear View Ports & Slots
- Rear Handle
- Power button
- Power connector
- USB 3 Type-A (x6) (5 Gbps signaling rate)
- GbE Ethernet standard ports (x2)
- 10GbE Optional ports (optional) (x2)
