Key Features
- Supports 802.11ac standard – the next generation of Wi-Fi
- Simultaneous 2.4GHz 450Mbps and 5GHz 1300Mbps connections for1.75Gbps of total available bandwidth
- Dual USB Ports – easily share a printer locally and files & media with networked devices or remotely via FTP server
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
Specification
Hardware Features

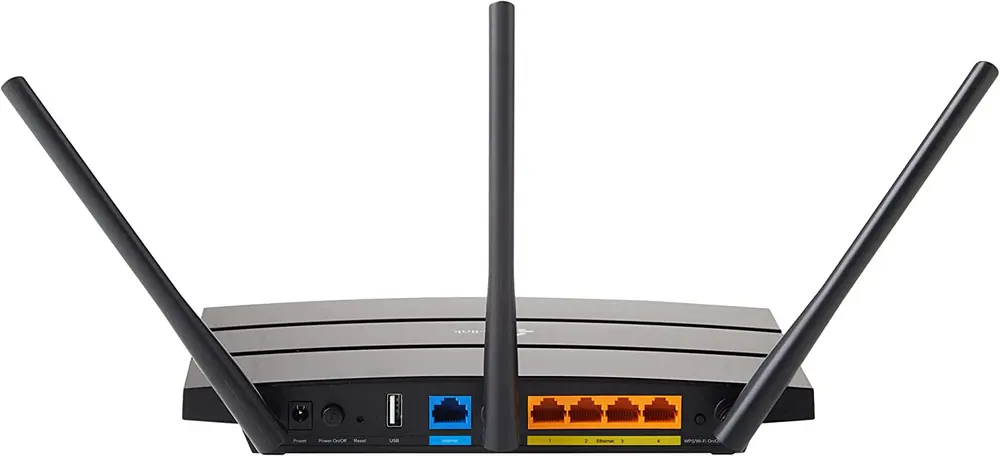

Interface : 4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
2 USB 2.0 Ports
Button: WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
External Power Supply : 12VDC / 2A
Dimensions ( W x D x H ) : 9.6×6.4×1.3 in. (243×160.6×32.5mm)
Antenna Type : Three detachable antennas ( RP-SMA)
Software Features
Quality of Service: WMM, Bandwidth Control
WAN Type : Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management: Access Control
Local Management
Remote Management
DHCP : Server, Client, DHCP Client List,
Address Reservation
Port Forwarding : Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS : DynDns, Comexe, NO-IP
VPN Pass-Through : PPTP, L2TP, IPSec
Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security : DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols: Supports IPv4 and IPv6
USB Sharing : Support Samba(Storage)/FTP Server/Media Server/Printer Server
Guest Network : 2.4GHz guest network × 1
5GHz guest network × 1
Wireless Features
Wireless Standards: IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency : 2.4GHz and 5GHz
Signal Rate : 5GHz: Up to 1300Mbps
2.4GHz: Up to 450Mbps
Reception Sensitivity : 5GHz：
11a 6Mbps-96dBm
11a 54Mbps: -79dBm
11ac HT20: -71dBm
11ac HT40: -66dBm
11ac HT80: -63dBm
2.4GHz
11g 54M: -77dBm
11n HT20: -74dBm
11n HT40: -72dBm
Transmit Power: CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security : 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
