Description
- 250 W PoE Budget: 24x 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
- Full Gigabit Ports: 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- IPv6: IPV6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

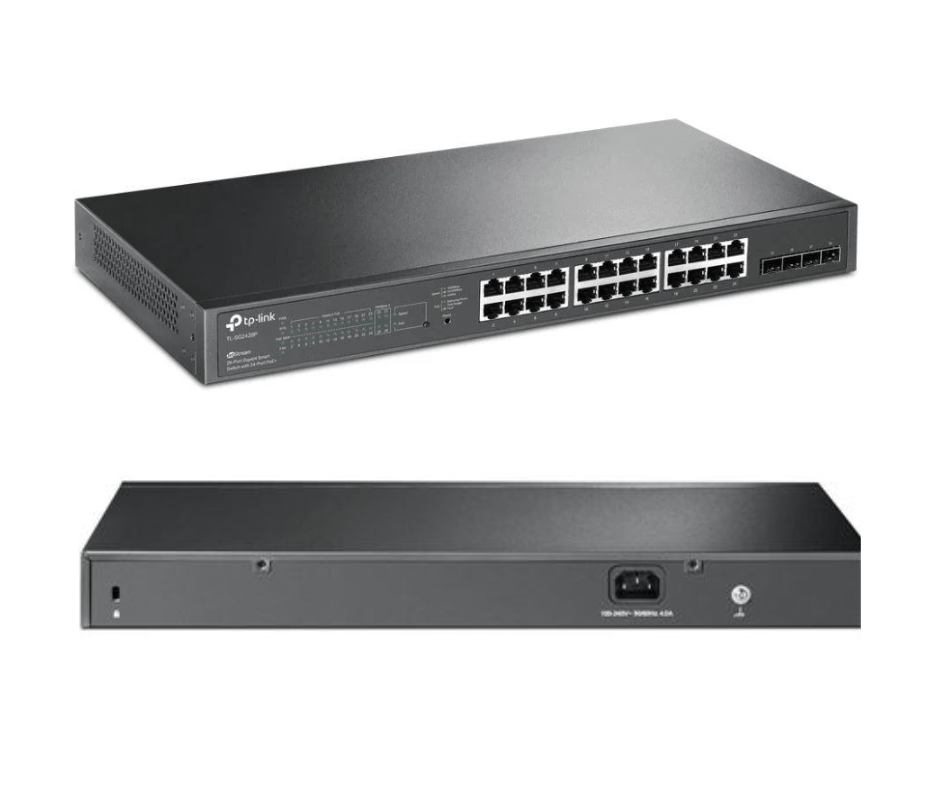

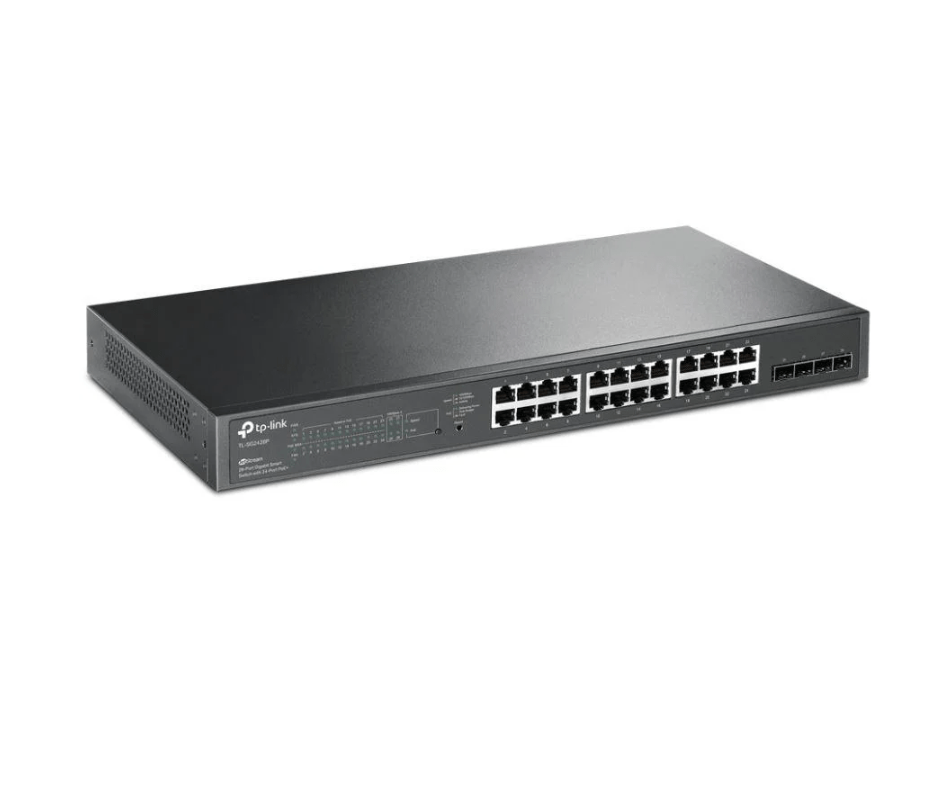

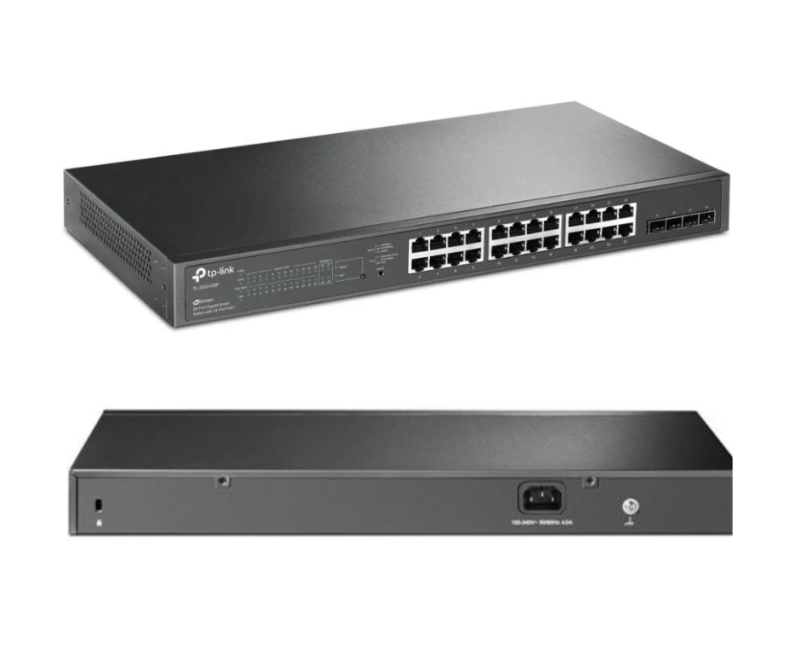

TP-Link TL-SG2428P Jetstream 28-Port Gigabit Smart Switch specifications
- Switch Type:
- 24-Port Gigabit Smart PoE Switch
- PoE Ports:
- 24 x Gigabit PoE+ Ports
- PoE Power Budget: Up to 180W
- SFP Ports:
- 4 x SFP Slots for Fiber Uplinks
- Switching Capacity:
- 48 Gbps
- Max Forwarding Rate:
- 35.7 Mpps
- Layer:
- Layer 2+ Features
- VLAN Support:
- Supports IEEE 802.1Q with 4,096 VLANs
- Quality of Service (QoS):
- Supports 8 priority queues
- QoS based on IEEE 802.1p/DSCP/TCP/UDP
- Security Features:
- IP-MAC-Port-VID Binding
- Access Control Lists (ACL)
- 802.1X Authentication
- Management:
- Web-based Graphical User Interface (GUI)
- Command Line Interface (CLI)
- SNMP v1/v2c/v3
- RMON (1, 2, 3, 9)
- SSH/SSL
- Power Supply:
- 100-240VAC, 50/60Hz
- Power Consumption:
- Maximum: 230W (PoE on)
- Maximum: 22.7W (PoE off)
- Dimensions:
- 17.32 x 8.70 x 1.73 inches (440 x 220 x 44 mm)
- Weight:
- 6.83 pounds (3.1 kg)
- Operating Temperature:
- 0°C to 40°C (32°F to 104°F)
- Operating Humidity:
- 10% to 90% non-condensing
- Certifications:
- CE, FCC, RoHS
- Package Contents:
- TL-SG2424P Smart PoE Switch
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
