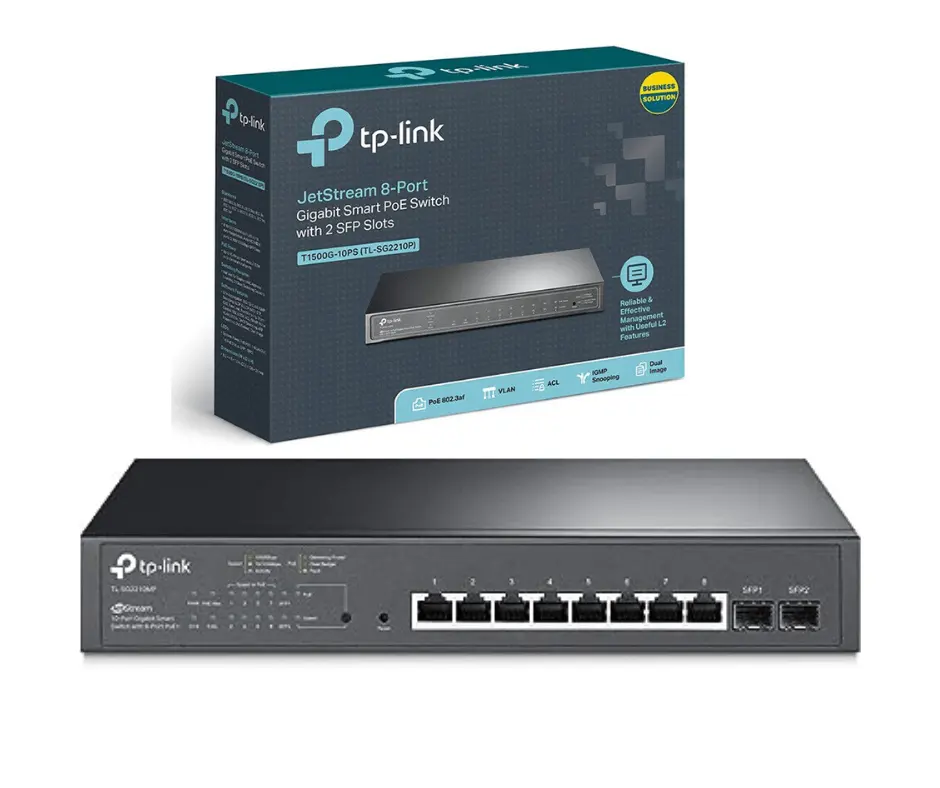

TP-Link TL-SG2210MP | Jetstream 10 Port Gigabit Smart Managed PoE switch | 8 PoE+ Ports @ 150W, 2 SFP Slots | Support Omada SDN | PoE Recovery | IPv6 | Static Routing
TP-Link TL-SG2210P
HARDWARE FEACTURES
STANDARDS AND PROTOCOLS
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
INTERFACE
- 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
- 2× 100/1000 Mbps SFP Slots
NETWORK MEDIA
- 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
- 100BASE-FX: MMF, SMF
- 1000BASE-X: MMF, SMF
FAN QUANTITY
1
PHYSICAL SECURITY LOCK
Yes
POWER SUPPLY
100-240V AC, 50/60Hz
POE+ PORTS(RJ45)
- Standard: 802.3at/af compliant
- PoE+ Ports: 8 Ports
- Power Supply: 150 W
POE PORTS (RJ45)
- Standard: 802.3at/af compliant
- PoE+ Ports: 8 Ports
- PoE Power Budget: 150 W*
DIMENSIONS ( W X D X H )
11.6 x 7.1 x 1.7 in
(294 x 180 x 44 mm)
MOUNTING
Desktop,
13″ or 19″ 1U rack mountable
MAX POWER CONSUMPTION
- 12.2 W (110 V / 60 Hz with no PD connected)
- 173.9 W (110 V / 60 Hz with 150 W PD connected)
MAX HEAT DISSIPATION
- 41.6 BTU/h (with no PD connected)
- 539.4 BTU/h (with 150 W PD connected)
PERFORMANCE
SWITCHING CAPACITY
20 Gbps
PACKET FORWARDING RATE
14.9 Mpps
MAC ADDRESS TABLE
8K
PACKET BUFFER MEMORY
4.1 Mbit
JUMBO FRAME
9 KB
SOFTWARE FEACTURES
QUALITY OF SERVICE
- 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port/Flow based Rating Limit
- Smoother Performance
- Storm Control
- Multiple Control Modes(kbps/ratio)
