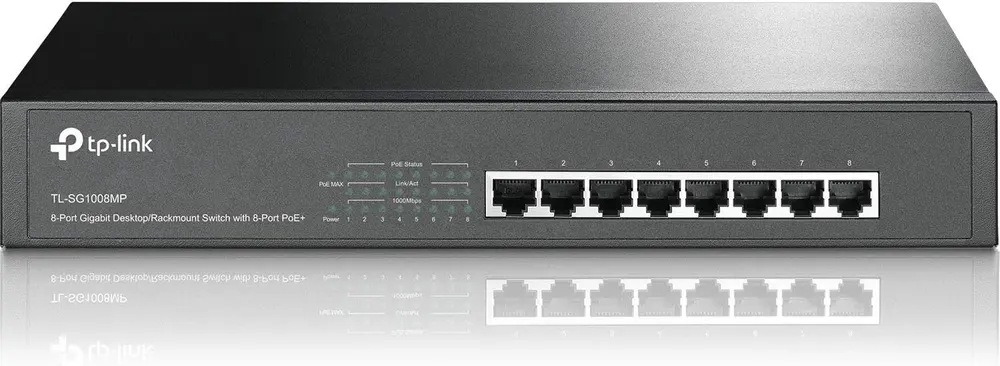

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology reduces power consumption, making it an eco-friendly solution for your business network.
How This Product Works

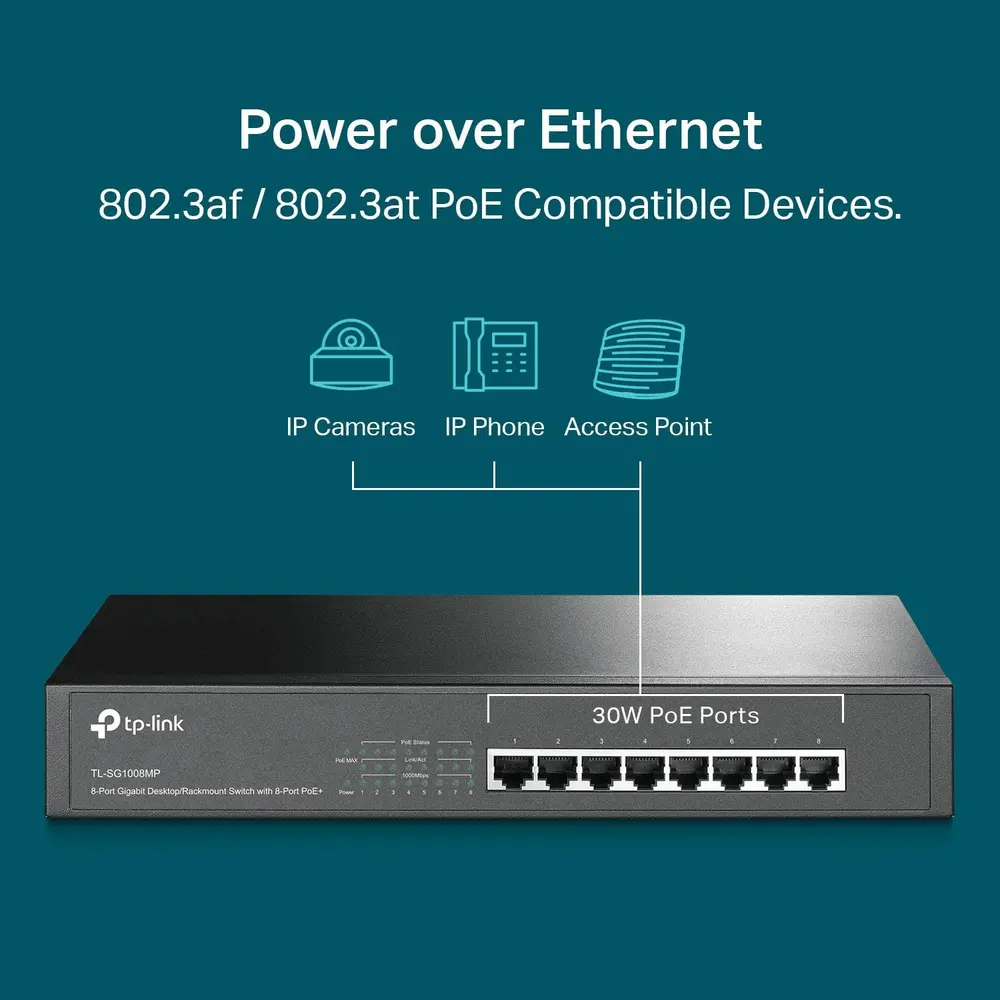

All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply

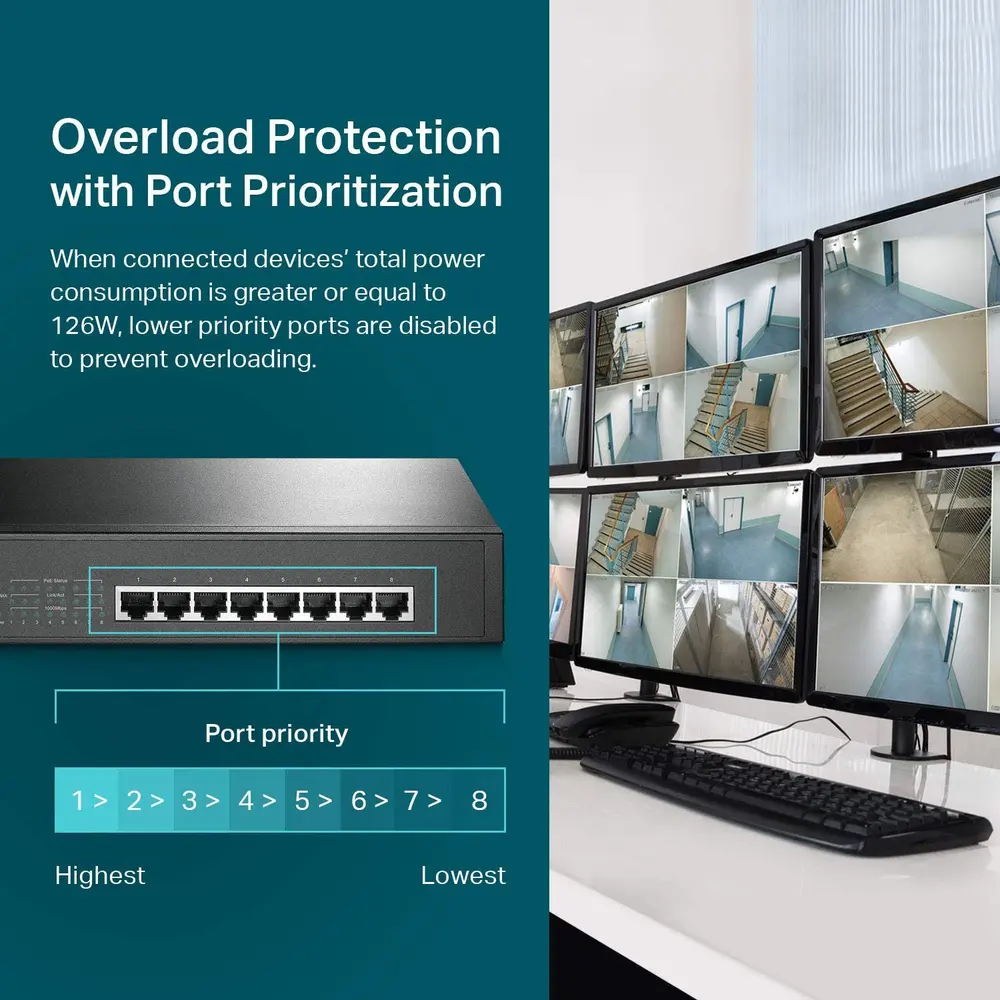

Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4, 5 and 7 are using 30W (maximum power per port is 30W, the system power is 126W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2, 4 and 5 will use 30W, and Port 3 will use 25W, while no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.
HARDWARE FEATURES
INTERFACE
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
NETWORK MEDIA
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
FAN QUANTITY
1
PHYSICAL SECURITY LOCK
No
POWER SUPPLY
100-240VAC, 50/60Hz
PACKET FORWARDING RATE
11.904 Mpps
POE+ PORTS(RJ45)
Standard: 802.3af/at compliant
PoE+ Ports: 8 Ports
Power Supply: 153W
MAC ADDRESS TABLE
4K
BUFFER SIZE
1.5Mbits
JUMBO FRAME
16 KB
SWITCHING CAPACITY
16Gbps
DIMENSIONS ( W X D X H )
11.6*7.1*1.7 in. (294*180*44 mm)
MOUNTING
Desktop/Rack Mountable
MAX POWER CONSUMPTION
8.57W(220V/50Hz. no PD connected)
173.65W(110V/60Hz. with 153W PD connected)
MAX HEAT DISSIPATION
29.22BTU/h(no PD connected)
592.15BTU/h(with 153W PD connected)
SOFTWARE FEATURES
ADVANCED FEATURES
Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
TRANSFER METHOD
Store-And-Forward
OTHERS
CERTIFICATION
FCC, CE, RoHS
PACKAGE CONTENTS
TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
ENVIRONMENT
- Operating Temperature: 0℃~50℃ (32℉~122℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
