TL-ARCHER C60 descriptions
- Get faster Wi-Fi at both the 2.4 GHz band (450 Mbps) and the 5 GHz band (867 Mbps)
- The advanced AC Wi-Fi unlocks the performance of all your wireless devices
- Three 2.4 GHz antennas and two 5 GHz antennas create superior Wi-Fi coverage
- MU-MIMO achieves 2× efficiency by communicating with up to 2 devices simultaneously
- Beamforming technology delivers highly efficient wireless connection (supported by Version 2.0 and above)
- Advanced software functions like Parental Controls and Guest Network provide personalized management
- Tether app provides easy router management in your palm

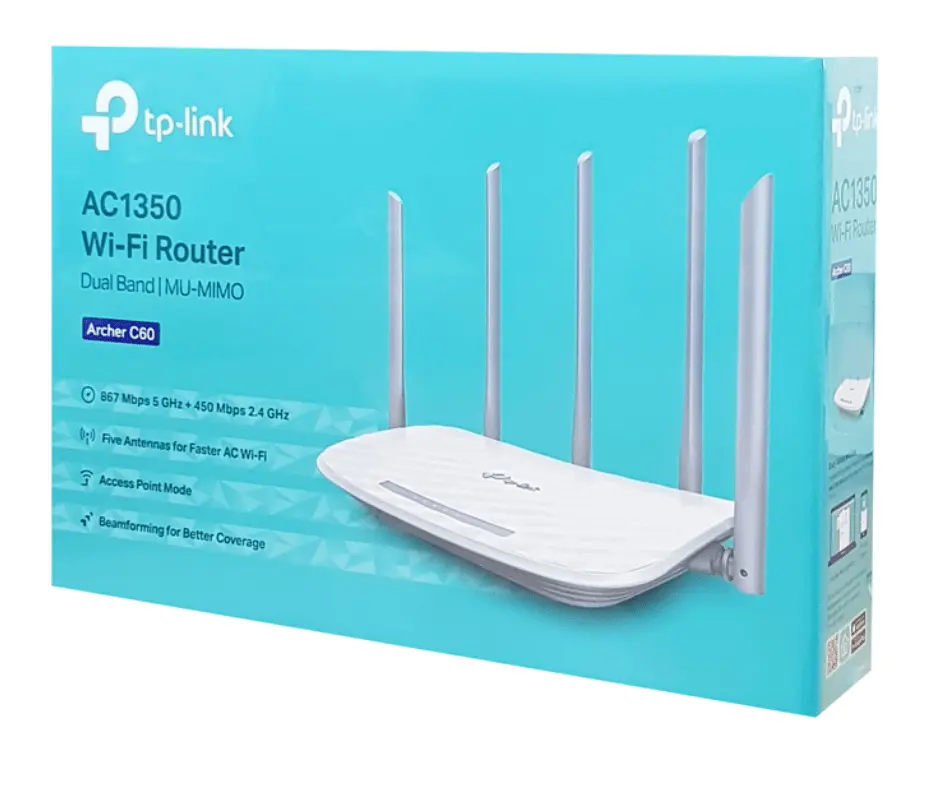

TP-Link AC1350 Wireless Dual Band Router – TL-ARCHER C60 specs
HARDWARE FEACTURES
INTERFACE
4 × 10/100Mbps LAN Ports
1 × 10/100Mbps WAN Port
BUTTON
WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
EXTERNAL POWER SUPPLY
12VDC/1A
DIMENSIONS ( W X D X H )
9.1×5.7×1.5in. (230×144×37mm)
ANTENNA
3 × 2.4GHz Antennas
2 × 5GHz Antennas
WIRELESS FEACTURES
WIRELESS STANDARDS
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
WIRELESS SPEEDS
450Mbps(2.4GHz)
867Mbps(5GHz)
FREQUENCY
2.4-2.5GHz
5.15-5.25GHz
TRANSMIT POWER
CE:
<=20dBm （2.4G）
<=23dBm （5G）
WIRELESS MODES
Wireless Router
WDS(Four Address)
WDS(AP+APC)
WIRELESS SECURITY
WEP
WPA\WPA2
WPA-PSK\WPA2-PSK
SOFTWARE FEACTURES
QUALITY OF SERVICE
WMM, Bandwidth Control
WAN TYPE
Dynamic IP/Static IP/PPPoE/
BigPond/ /L2TP(Dual Access) /PPTP(Dual Access)
MANAGEMENT
Access Control
Local Management
Remote Management
DHCP
Server, Client, DHCP Client List, Address Reservation
VPN PASS-THROUGH
PPTP
L2TP
IPSec
ACCESS CONTROL
Parental Control
Local Management Control
Host List
Access Schedule
Rule Management
PROTOCOLS
IPv4
IPv6
GUEST NETWORK
2.4GHz guest network
5GHz guest network
OTHERS
CERTIFICATION
CE, RoHS
PACKAGE CONTENTS
AC1350 Wireless Dual Band Router Archer C60
Power supply unit
Ethernet Cable
Quick Installation Guide
ENVIRONMENT
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
OPERATING SYSTEM
Microsoft Windows XP/Vista/7/8/8.1/10
MAC OS, NetWare, UNIX or Linux
