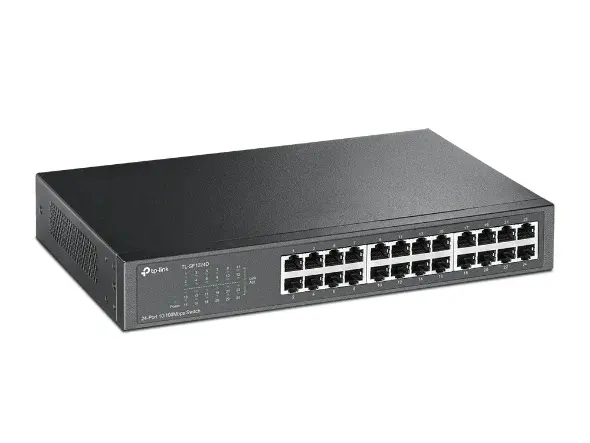

TP-Link 24 Port 10/100Mbps Fast Ethernet Switch | Plug & Play | Desktop/Rackmount | Sturdy Metal w/ Shielded Ports | Fanless | Limited Lifetime protection | Unmanaged (TL-SF1024D)
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
HARDWARE FEATURES
STANDARDS AND PROTOCOLS
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
INTERFACE
24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
NETWORK MEDIA
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
FAN QUANTITY
Fanless
PHYSICAL SECURITY LOCK
Yes
POWER SUPPLY
External Power Adapter(Output: 9VDC/0.6A)
POWER CONSUMPTION
Maximum: 3.2W
DIMENSIONS ( W X D X H )
11.6*7.1*1.7 in. (294*180*44 mm)
MOUNTING
Rack Mountable
MAX POWER CONSUMPTION
3.19W(220V/50Hz)
MAX HEAT DISSIPATION
10.88BTU/h
PERFORMANCE
SWITCHING CAPACITY
4.8Gbps
PACKET FORWARDING RATE
3.57Mpps
MAC ADDRESS TABLE
8K
BUFFER MEMORY
2Mb
GREEN TECHNOLOGY
Innovative energy-efficient technology saves power up to 75%
TRANSFER METHOD
Store-and-Forward
OTHERS
CERTIFICATION
FCC, RoHS
PACKAGE CONTENTS
24-Port 10/100Mbps Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
ENVIRONMENT
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
