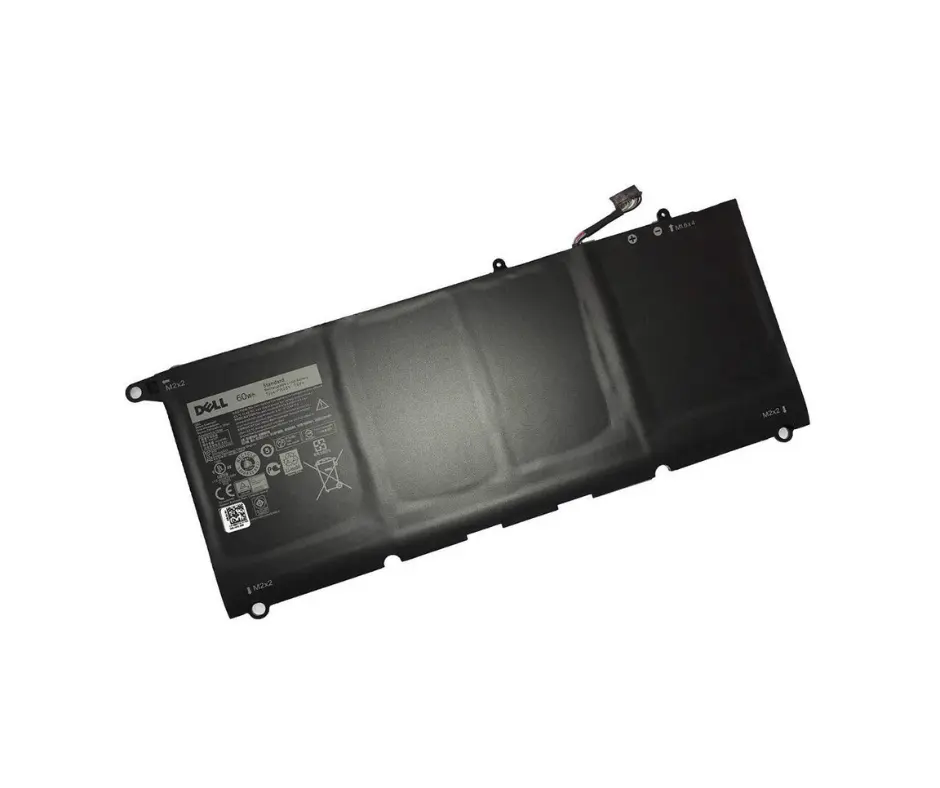

DELL PW23Y Laptop Battery Compatible with Dell XPS 13 9360 P54G002 13-9360-D1605G 13-9360-D1605T 13-9360-D1609 13-9360-D1609G 13-9360-D1705G Series Replacement TP1GT RNP72 0RNP72 0TP1GT 7.6V 60Wh
About this item
This original Dell xps 9360 battery replacement is rated for 60Wh and 4 cells, featuring the brand and type DP/N PW23Y TP1GT RNP72. As the original spare part from Dell, this battery offers trusted performance, so you can work reliably with your laptop. A maximum voltage of 7.6v ensures reliable power output and a long lifespan.
Item: Dell 60Wh 4-Cell Battery
- Condition: New
- Brand: Dell Original Spare Part
- Type: PW23Y
- DP/N: TP1GT, 0TP1GT, RNP72, 0RNP72
Voltage: 7.6v
Wh: 60whr
Cells: 4 Cell
Fits the following Dell laptop
Dell XPS 13 9360
Please check you are replacing Type PW23Y before purchase, the Type code can be found on the battery label. You can also contact us and we can check for you.
Please note: Screws are not included. Please retain the original screws for the installation of this part.
How to install the battery
PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We also recommend using anti-static equipment to prevent hardware damage.
Removing the old battery
- Power off the laptop.
- Turn over the laptop and unscrew the base plate cover.
- Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)
- Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)
- Unscrew the battery and remove the battery from the laptop.
Installing the New Battery
- Align the new battery into position (Do not plug the battery in yet)
- Install the battery screws
- Plug the battery cable into the motherboard
- Replace the base plate by applying light pressure to ensure it's seated correctly.
- Install the base plate screws
- Plug the power adapter into the laptop and then switch on the laptop.
