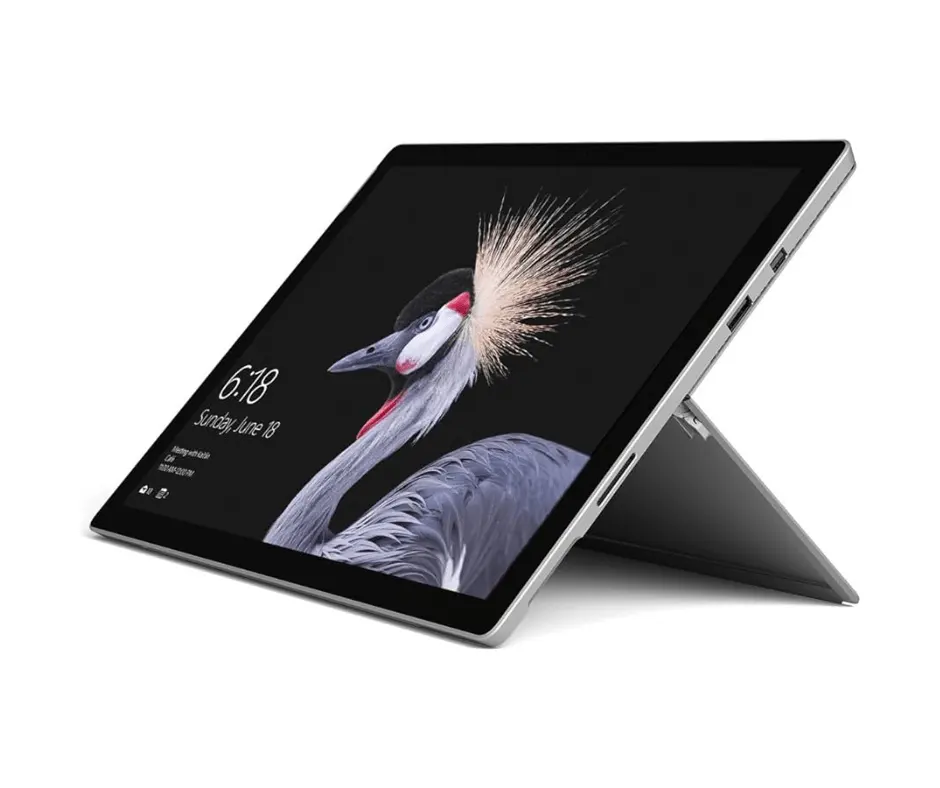

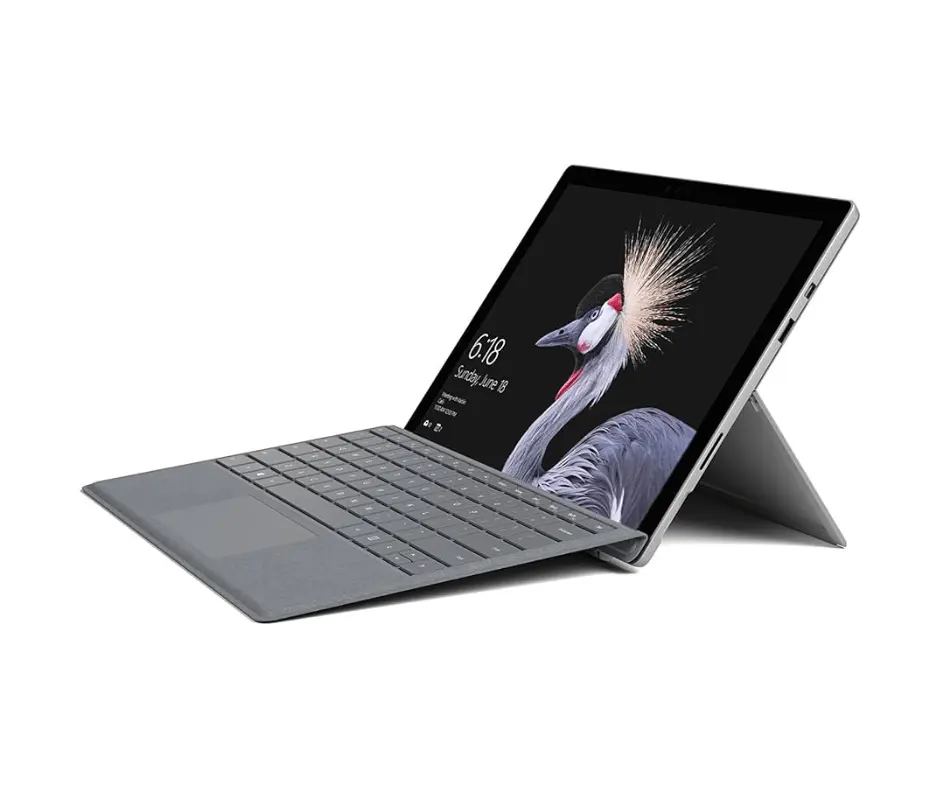

Microsoft Surface Pro 5 Tablet,12.3 inch (2736 x 1824), Intel Core i5-7300U 2.6 GHz, 8GB RAM 256GB SSD

Surface Pro (5th Gen)

Surface Pro (5th Gen)

Diagrams of Surface Pro (5th Gen)

Not sure where to plug something in or how to turn up the volume? We've got you covered. Here are a few diagrams to help you find your way around.

• Headset jack
• Power button
• Volume
• Windows Hello with face sign-in
• Front-facing camera
• Mini DisplayPort (version 1.2)
• USB 3.0
• SurfaceConnect
• Kickstand
• microSD™card reader

Surface Pro (5th Gen) tech specs

Dimensions

11.5” x 7.9” x 0.33” (292 mm x 201 mm x 8.5 mm)

Display

• Screen: 12.3” PixelSense™ Display
• Resolution: 2736 x 1824 (267 PPI)
• Aspect Ratio: 3:2
• Touch: 10 point multi-touch

Processor

Intel® Core™ 7th-generation i5

Security

TPM chip for enterprise security
Enterprise-grade protection with Windows Hello face sign-in

Software
Windows 10 Pro (i5)

Sensors
Ambient light sensor
Accelerometer
Gyroscope

Storage

Solid state drive (SSD) : 256GB

What's in the box
Surface Pro
Power supply
Quick Start Guide
Safety and warranty documents

Network

4G LTE Cat 9 modem up to 450Mbps
GPS / GLONASS: Standalone and Assisted GNSS, accuracy up to 3 meters
Nano SIM Tray and Embedded SIM (eSIM)
4G (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 26, 28, 29, 30, 38, 39, 40, 41)

Battery Life

Up to 6 hours of local video playback1 (Wi-Fi)
Up to 5 hours of local video playback1 (4G)

Graphics

Intel® HD Graphics 620 (i5)

Connections
1 x Full-size USB 3.0
microSDXC card reader
Surface Connect
3.5mm Headphone jack
Mini DisplayPort
Cover port

Cameras, video, and audio

Windows Hello face authentication camera (front-facing)
5.0MP front-facing camera with 1080p Skype HD video
8.0MP rear-facing autofocus camera with 1080p Full HD video
Dual microphones
1.6W Stereo speakers with Dolby® Audio™ Premium

Wireless

Wi-Fi: IEEE 802.11 a/b/g/n/ac compatible
Bluetooth Wireless 4.1 technology

Exterior
Surface Pen
Surface Keyboard

Weight

i5: 1.70 lbs (770 g)
i5 with 4G: 812 g

Model number
1796 (Wi-Fi)
1807 (4G)
