Product overview

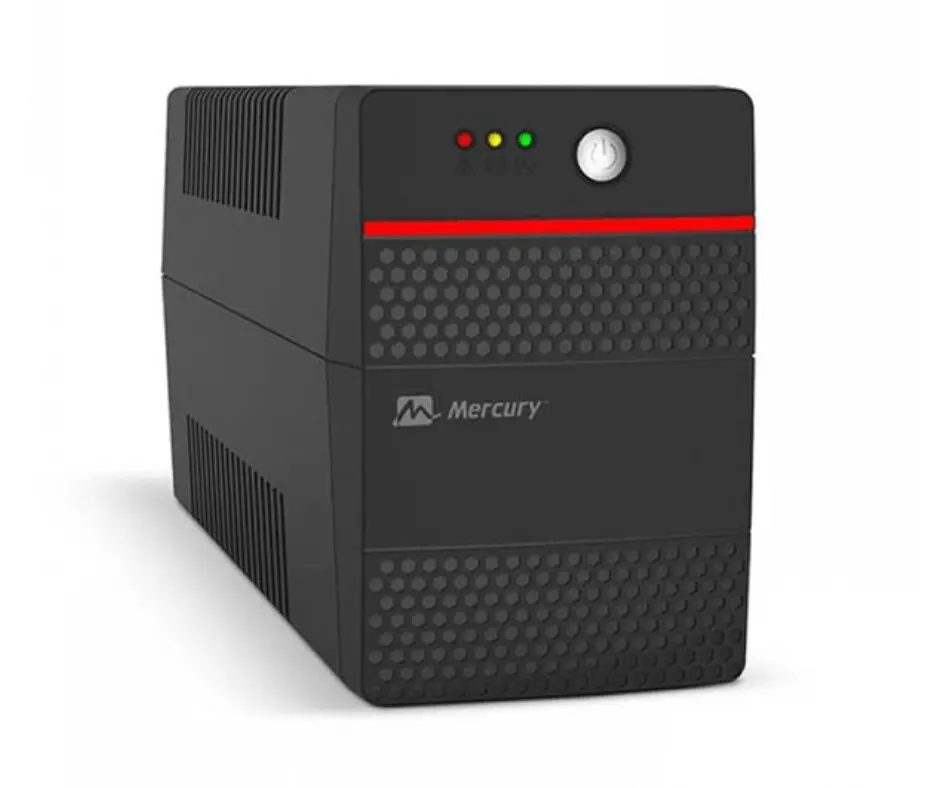

Mercury Maverick 1550 UPS is a reliable alternative power source. It is your perfect backup in the events of a power outage to keep your devices running. When there is a power cut, this UPS automatically switches over with zero downtime. Mercury Maverick 1550 UPS protects your electronic equipment from damage due to power outages, surges, and spikes while providing short term battery power during an outage. The Mercury Maverick 1550 UPS features Automatic Voltage Regulation (AVR), which instantly adjusts high and low voltage fluctuations to safe levels for your electronics, saving battery power for when you need it most during storms and power outages. Additionally, UK Plug sockets make for easy-to-use connection of protected equipment. Specifically designed to protect your PC equipment and network connection in harsh power environments, the Back-UPS ensures maximum productivity and work efficiency.
Distinctive Features
Automatic restart of loads after UPS shutdown – Automatically starts up the connected equipment upon the return of utility power. Automatic self-test – Periodic battery self-test ensures early detection of a battery that needs to be replaced. Automatic Voltage Regulation (AVR) – Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Resettable circuit breaker – Easy recovery from overloads; no need to replace a fuse.
General specifications
•
Input
- Voltage 220-230VAC
- Voltage Range 140-300 VAC
- Frequency: 50 / 60Hz
- Current:7.2A Max
•
Output
- Voltage Regulation (Bat.Mode): +/-10%
- Frequency :50 / 60Hz
- Waveform: Simulated Sine wave
•
Battery
- Battery Type: 12V / 8.2AH x2
- Charging ability: 6 hours recover to 90% capacity
•
Transfer Time
- Typical:2-6ms
- Protection: Short circuit, Overload, Battery discharge and overcharge, Surge Protection
•
Indications
- Line Mode: Greenlighting
- Battery Mode : Yellow flashing
- Fault: Red Lighting
•
Audible Alarm
- Battery Mode: Sounding every 10 sec
- Battery low: Sounding every 1 sec
- Overload: Sounding every 0.5 sec
- Fault: Continuous sounding
•
Environment
- Humidity 0-90% relative Humidity 0-40°C (Non-condensing)
- Noise Level : Less than 40dB
- Dimension: 313 x129 x175
