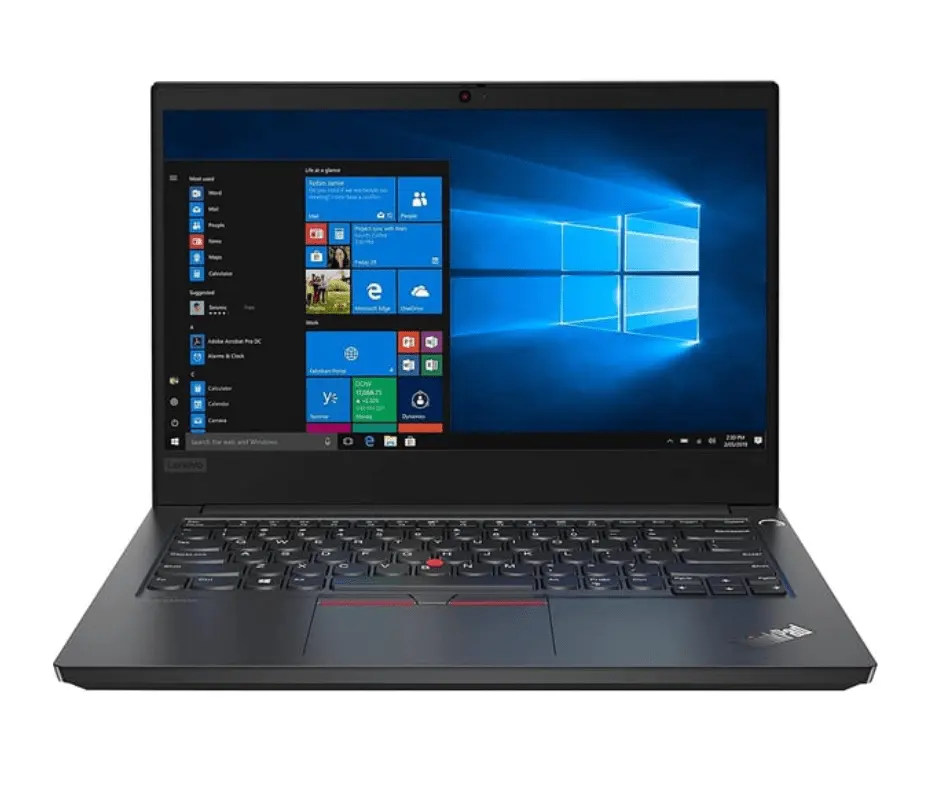

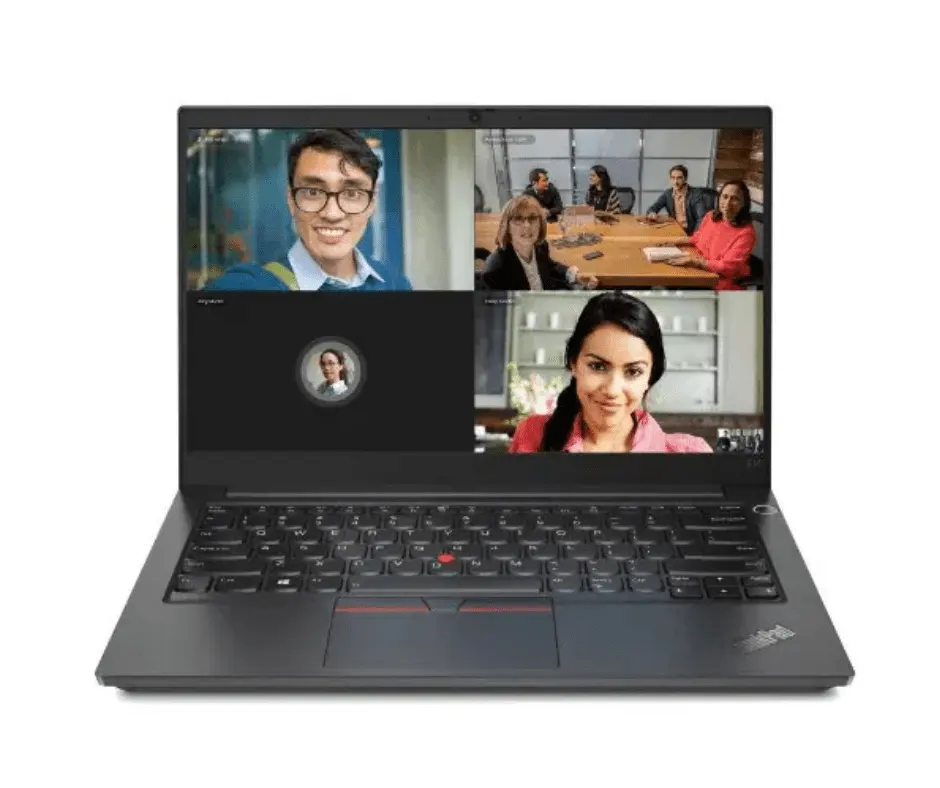

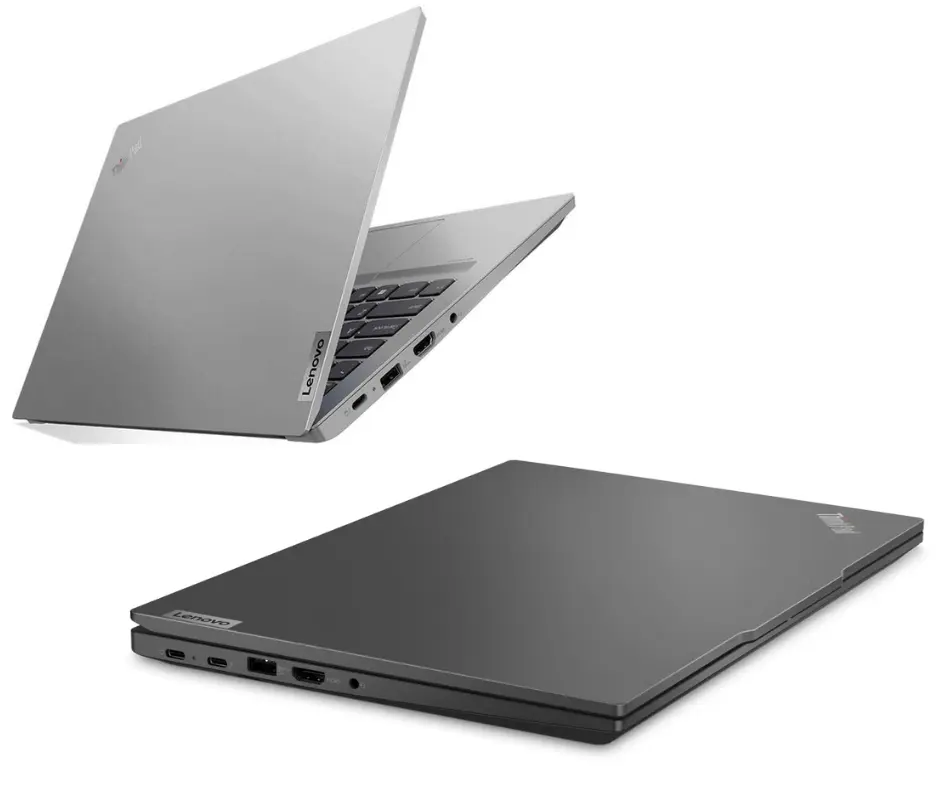

Lenovo ThinkPad E14 Intel Core i5 8GB RAM 256GB SSDPERFORMANCE
Processor
Intel Core i5-1235U, 10C (2P +8E) / 12T, P-core 1.3 / 4.4GHz, E-core 0.9 / 3.3GHz, 12MB
Graphics
Integrated Intel Iris Xe Graphics functions as UHD GraphicsChipsetIntel SoC Platform
Memory
8GB Soldered DDR4-3200
Memory Slots
One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable
Max Memory
Up to 40GB (8GB soldered + 32GB SO-DIMM) DDR4-3200
Storage
256GB SSD M.2 2242 PCIe 4.0×4 NVMe Opal2
Storage Support
One drive offering, up to 1TB M.2 2242 SSD
Storage Slot
Two M.2 slots • One M.2 2242 PCIe Gen 3×4 slot, supports M.2 2242 SSD • One M.2 2242 PCIe Gen 4×4 slot, supports M.2 2242 SSDCard ReaderNo card readerOpticalNone
Audio Chip
High Definition (HD) Audio, Realtek ALC3287 codec
Speakers
Stereo speakers, 2W x2, Dolby Audio, audio by HARMAN
Camera
FHD 1080p with Privacy ShutterMicrophone2x, ArrayBatteryIntegrated 45Wh
Max Battery Life
Model with 45Wh battery: MobileMark 2018: up to 9.4 hr. JEITA 2.0: up to 16.1 hr. Local video (1080p) playback@150nits: up to 11.8 hr.Power Adapter65W USB-C (3-pin)DESIGN
Display
14″ FHD (1920×1080) IPS 300nits Anti-glare, 45% NTSCTouchscreenNone
Keyboard
Non-backlit, English (UK)Case ColorBlack
Case Material
Aluminum (Top), Aluminum (Bottom)
Dimensions (WxDxH)
324 x 220.7 x 17.9 mm (12.76 x 8.69 x 0.7 inches)
Weight
Starting at 1.64 kg (3.62 lbs)SOFTWAREOperating SystemNoneBundled SoftwareNoneCONNECTIVITYEthernet100/1000MWLAN + BluetoothWi-Fi 6 11ax, 2×2 + BT5.1WWANNoneSIM CardNoneNFCNone
Standard Ports
- 1x USB 2.0
- 1x USB 3.2 Gen 1 (Always On)
- 1x Thunderbolt 4 / USB 4 40Gbps (support data transfer, Power Delivery 3.0, and DisplayPort 1.4)
- 1x HDMI, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured)1x Ethernet (RJ-45)
Docking
Various docking solutions supported via Thunderbolt. For more compatible docking solutionsMonitor CableNoneSECURITYSmart Card ReaderNoneSecurity ChipDiscrete TPM 2.0Fingerprint ReaderTouch Style
Physical Locks
Kensington Security Slot, 3 x 7 mmOther SecurityCamera privacy shutterMANAGEABILITYSystem ManagementNon-vProSERVICEBase Warranty1-year, Depot
Included Upgrade
2Y Depot from 1Y Depot MEA DOS (CPN) (5WS1D71404)ACCESSORIES
Bundled Accessories
Lenovo 15.6″ Laptop Casual Toploader, Polyester, Grey
