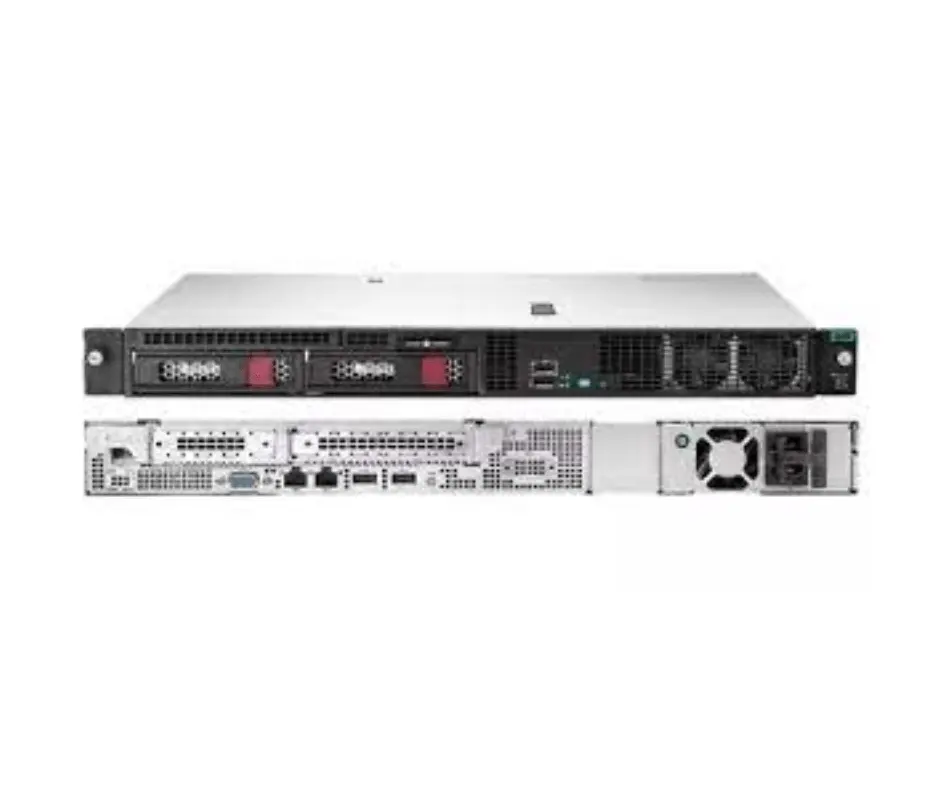

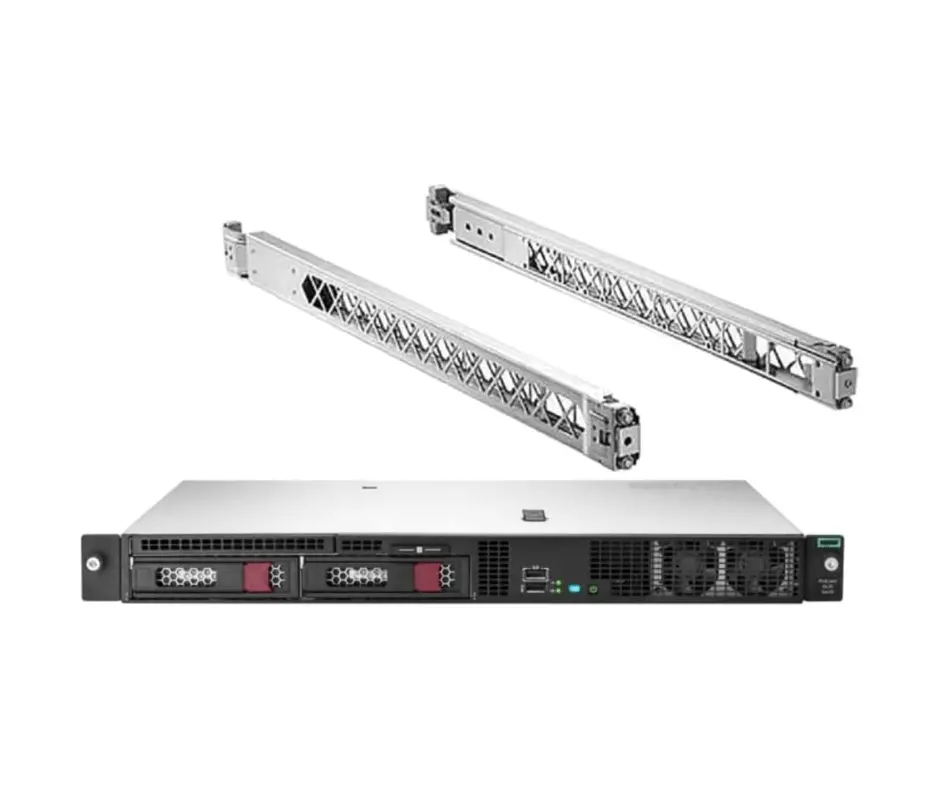

HPE ProLiant DL20 Gen 10 Plus 1U Rack Server 1 x Intel Xeon E-2314 2.80 GHz  8GB RAM 1TB HDD Serial ATA Controller

PROCESSOR

Processor manufacturer : Intel

Processor family : Intel Xeon E

Processor model : E-2314

Processor frequency : 2.8 GHz

Processor boost frequency : 4.5 GHz

Processor cores : 16

Processor cache : 8 MB

Idle States : Yes

Execute Disable Bit : Yes

MEMORY

Internal memory : 8 GB

Internal memory type : DDR4-SDRAM

Memory clock speed : 3200 MHz

Memory layout (slots x size) : 1 x 8GB

ECC : Yes

Memory slots : 4x DIMM

Maximum internal memory : 128 GB

STORAGE

Maximum storage capacity : 36 TB

HDD interface : Serial Attached SCSI (SAS)

RAID support : Yes

Optical drive type : No

NETWORK

Ethernet interface type : Gigabit Ethernet

Cabling technology : 10/100/1000Base-T(X)

Ethernet LAN : Yes

LAN controller : Broadcom BCM5720

PORTS & INTERFACES

Ethernet LAN (RJ-45) ports : 2

USB 2.0 ports quantity : 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity : 3

VGA (D-Sub) ports quantity : 1

DESIGN

Chassis type : Rack (1U)

SOFTWARE

Compatible operating systems

Microsoft Windows Server 2019: Essentials, Standard, Datacenter, Hyper-V Microsoft Windows Server 2022: Essentials, Standard, Datacenter Red Hat Enterprise Linux (RHEL): 8.4 (64 bit, includes KVM) SUSE Linux Enterprise Server (SLES): 12 SP5, 15 SP3 (64 bit, includes KVM & Xen) VMware ESXi: 7.0 U3

PROCESSOR SPECIAL FEATURES

Intel Software Guard Extensions (Intel SGX) : Yes

Intel 64 : Yes

Intel Virtualization Technology (VT-x) : Yes

Intel VT-x with Extended Page Tables (EPT) : Yes

Intel Trusted Execution Technology : Yes

Enhanced Intel SpeedStep Technology : Yes

Intel Virtualization Technology for Directed I/O (VT-d) : Yes

CPU configuration (max) : 1

POWER

Power supply : 290 W

Power supply input voltage : 100 - 240 V

Power supply input frequency : 50/60 Hz

WEIGHT & DIMENSIONS

Width : 434.6 mm

Height : 43.2 mm

Depth : 382.2 mm
