HP Z4 G4 Workstation is the latest and greatest from HP Z Series. The single processor workstation supports Xeon W Series or Core X Series Processors. Power through your most complex applications efficiently and rapidly with up to 18 cores. That's 36 cores hyperthreading! Has room for up 512GB of DDR4 RAM with speeds up to 2666MT/s with select CPUs. The new strategically design places vents and ducts throughout the system for streamline airflow for ultra-quiet performance. This system is ideal for healthcare, civil engineering, architecture, and construction.
Type: HP Z4 G4 Workstation. Seller refurbished units may have minor cosmetic blemishes.
Processor: Single Intel Xeon W-2123 Quad Core 3.6Ghz Processor. 4 Total Cores, 8 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available).
Memory: 16GB. Supports up to 512GB of total memory, Four channel memory up to 2666MHz DDR4 ECC memory, 2 DIMMs per Channel, 8 DIMM Slots. .
Storage: 1TB PC SATA (Additional solid state or hard drive configurations available).
Storage Controller: Onboard SATA Controller, Raid 0,1,5,10
Expansion Bays
- 2 internal 3.5" bays (with acoustic dampening rail assemblies pre-installed)
- 2 external 5.25" bays
- 1 dedicated 9.5mm slim optical disk drive bay
Interface Support
- 6 channel SATA 6.0 Gb/s interface, supports Raid 0/1/5/10
- 6 channels are eSATA configurable for use with eSATA CTO/AMO Kit (No hot plug / hot swap supported)
- USB 2.0, USB 3.1 G1 (aka USB 3.0), USB 3.1 G2 (optional), Thunderbolt 3 (optional)
Graphics: Nvidia Quadro P4000 8GB GDDR5 Graphic Card Ports: (4) Mini DP 1.4 (Additional graphic cards available). Support for 2 PCI Express x16 Gen 3 graphics cards - power connections are dependent on power supply option.
Operating System: Windows 11 Professional
Power Supply: 750W 90% efficient with 2 graphics power adapters
Optical Drive(s): DVDRW Drive.
Expansion Slots
- Slot 1: PCI Express Gen3 x16 (from CPU)
- Slot 2: PCI Express Gen3 x4 (from PCH) with open-ended connector*
- Slot 3: PCI Express Gen3 x16 (from CPU)
- Slot 4: PCI Express Gen3 x4 (from PCH) with open-ended connector*
- Slot 5: PCI Express Gen3 x8 (from CPU) with open-ended connector*
- M.2 Slot 1: M.2 PCIe Gen 3 x4 (from CPU) up to 80mm storage devices
- M.2 Slot 2: M.2 PCIe Gen 3 x4 (from CPU) up to 80mm storage devices
- * Open-ended connector allows a greater bandwidth (e.g. x16) card to be installed physically into a lower bandwidth connector/slot.
Networking: 2 RJ-45 to integrated Integrated Intel I219LM GbE LAN
Front Ports
- Included: Power button with power/fault LED, 1 Headset audio port, 4 USB 3.1 G1 Type A (1 charging)
- Optional: Power button with power/fault LED, Drive activity LED, 1 Headset audio port, 2 USB 3.1 G1 Type-A (1 charging), 2 USB 3.1 G2 Type-C, SD Reader. Type A (1 charging)

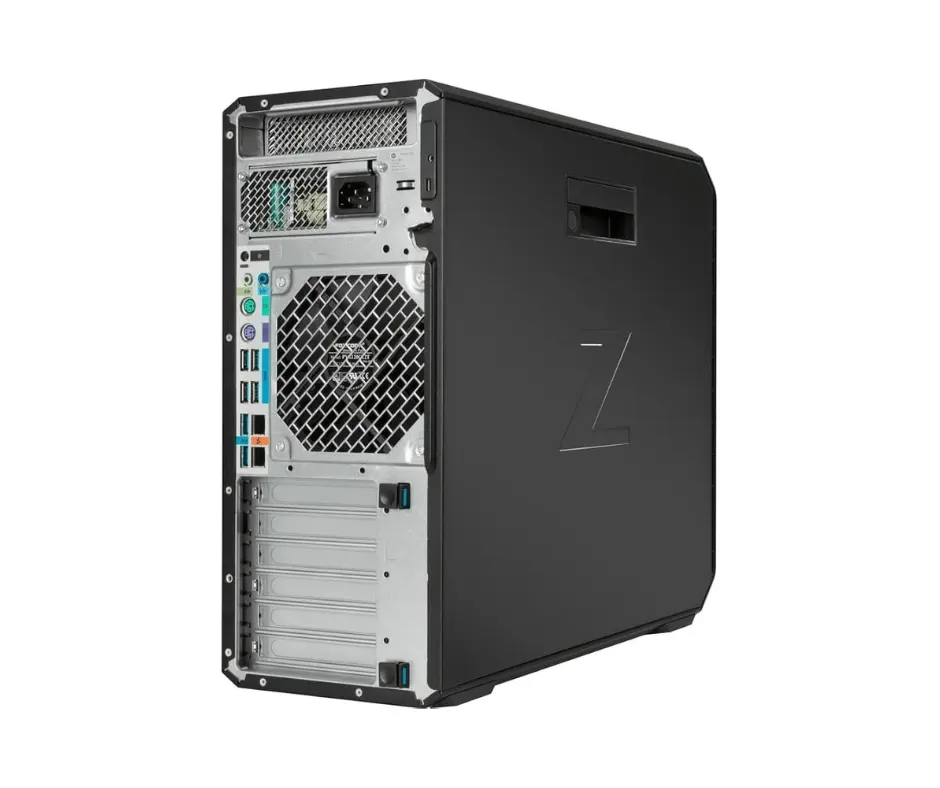

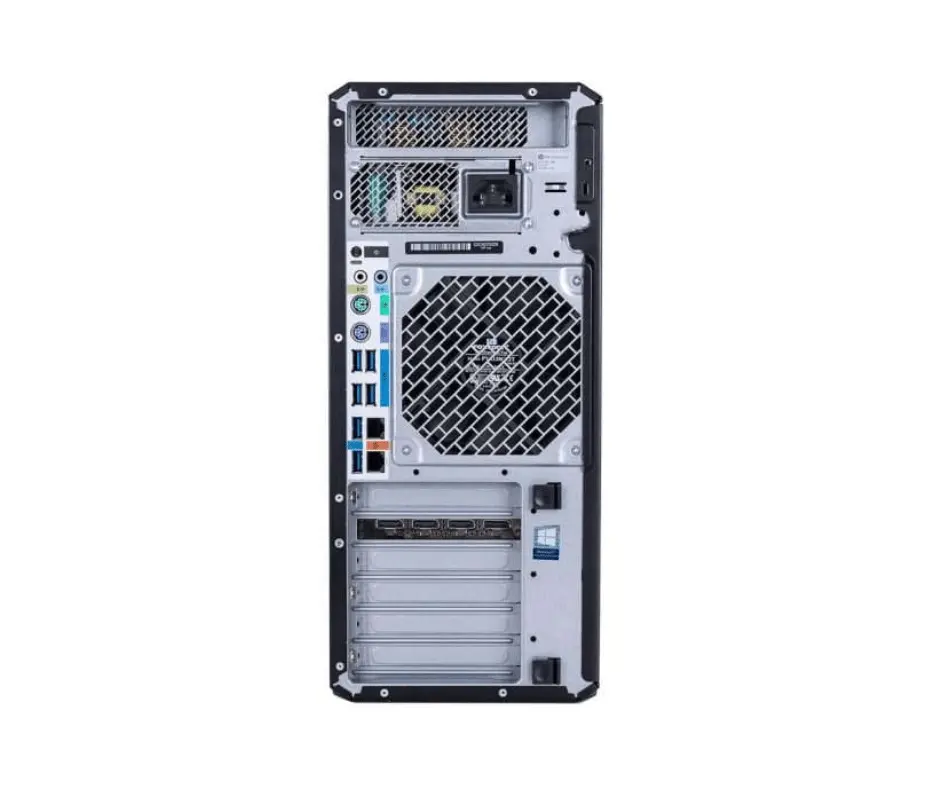

Rear Ports
- Included: 6x USB 3.1 G1 Type-A, 2x 1GbE LAN ports (1x supporting Intel AMT), Audio: 1 Line out, 1 Line in (Line in can be retasked as microphone), 1 PS/2 mouse port, 1 PS/2 keyboard port, 1 Rear power button
- Optional: 1 serial port (cable up to rear bulkhead), 2 Thunderbolt 3
Internal Ports
- 1 USB 3.1 G1 single-port header
- 1 USB 2.0 single-port header
- 1 USB 2.0 dual-port header
Audio Controller: Integrated Realtek HD ALC221 Audio
Speakers: Internal Speaker
Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.
Dimensions: 38 Lbs, 17.5'' x 6.65'' x 15.2'' (L x W x H)
Condition: Refurbished - Fully Tested. Seller refurbished units may have minor cosmetic blemishes.
