Product specifications
Display size (diagonal): 60.45 cm (23.8")
Aspect ratio: 16:09 [1]
Native resolution: FHD (1920 x 1080)
Resolutions supported
1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 800; 1440 x 900; 1600 x 900; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 800 x 600
Pixel pitch: 0.274 mm
Brightness: 250 nits
Contrast ratio: 1000:1
Onscreen controls
Brightness; Color control; Contrast; Exit; Image control; Information; Input source; Language; Management; Menu; Power; USB host selection
Display features
Anti-glare; Anti-static; BrightView panel; In plane switching; Language selection; LED backlights; Low haze; On-screen controls; Pivot rotation; Plug and Play; User programmable
Physical security
Security lock-ready
Input connector
1 HDMI 1.4; 1 VGA; 1 USB Type-C™ (Alternative mode DisplayPort™ 1.2, power delivery up to 65 W); 1 USB Type-B [4,5] (with HDCP support for USB-C™ and HDMI)

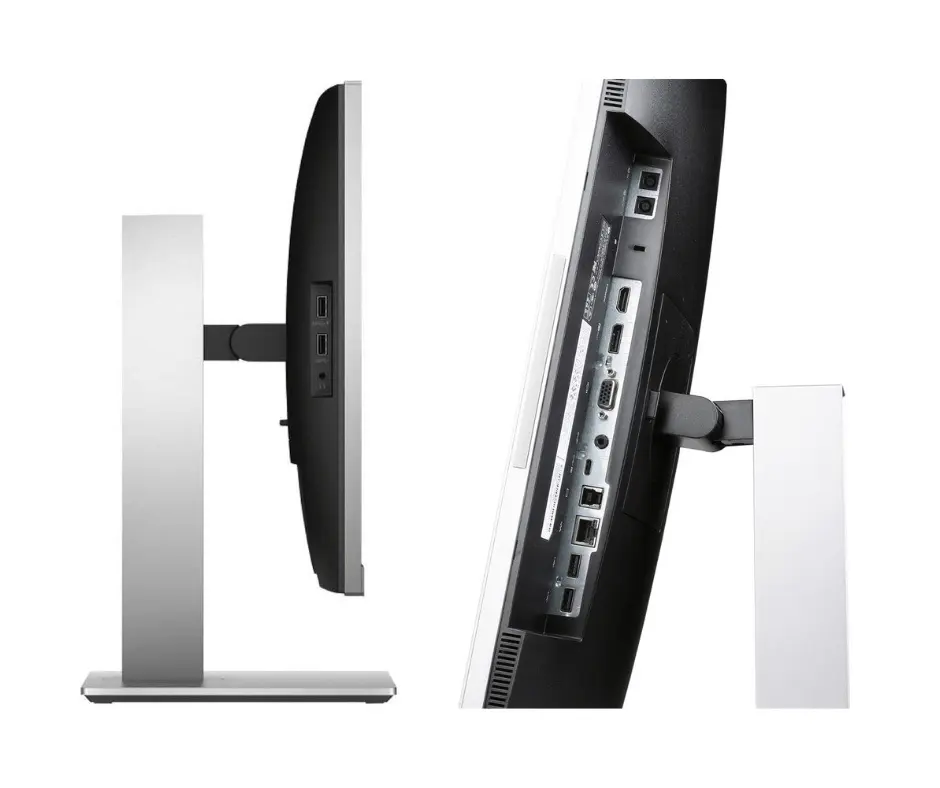

Ports
1 audio-in; 1 headphone-out; 1 RJ-45; 1 USB 3.1 (fast charging, power delivery up to 7.5 W); 3 USB 3.1 (power delivery up to 4.5 W); 1 DisplayPort™ 1.2-out [1,5]
Webcam
720p integrated HD with dual array microphone and LED
Minimum dimensions (W x D x H): 53.88 x 4.535 x 32.19 cm
Package dimensions (W x D x H): 62 x 40 x 27.3 cm
Weight: 6.2 kg
Package weight: 9.72 kg
Power: 100 - 240 VAC 50/60 Hz
Power consumption: 155 W (maximum), 38 W (typical), 0.5 W (standby)
Operating humidity range: 20 to 80% non-condensing
Sustainable impact specifications
Arsenic-free display glass; Low halogen; Mercury-free display backlights
Certifications and compliances
Australian-New Zealand MEPS; BSMI; BSMI AS/NZS 3548 Class B; CB; CCC; CE; cTUVus; EAC; FCC; ICES; ISO 9241-307; KC; KCC; Microsoft WHQL Certification (Windows 10, Windows 8.1 and Windows 7); NOM; PSB; SmartWay Transport Partnership (NA); TUV-S; UL; VCCI; Vietnam MEPS; WEEE; ISC; Low blue light; China Energy Label (CEL) Grade 3
Manufacturer Warranty
3 year limited warranty including 3 year of parts and labour. Certain restrictions and exclusions apply.
What's in the box
AC power cord; Documentation; HDMI cable; USB Type-A to B cable[WebCam cable]; External power supplier.
Tech spec footnote
[1] All specifications represent the typical specifications provided by HP's component manufacturers, actual performance may vary either higher or lower.
Tech spec footnote
[2] External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
Tech spec footnote
[3] Lock is sold separately.
Tech spec footnote
[4] 1 USB Type-C™ with HDCP support.
Tech spec footnote
[5] Only one host PC should be connected to either USB Type-C™ port or DC OUT port for Power pass through. Connecting two Host PCs to the HP EliteDisplay E243d 23.8-inch Docking Monitor may result in system shutdown, loss of power, and the need to power-cycle the monitor’s AC supply.
