Tech Specs
The product features and specifications are subject to change without prior notice
Technology
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
0,61 inch with C2 Fine
Color Light Output
3.500 Lumen- 2.300 Lumen (economy) In accordance with IDMS15.4
White Light Output
3.500 Lumen – 2.300 Lumen (economy) In accordance with ISO 21118:2020
Resolution
1080p
High Definition
Full HD
Aspect Ratio
16:9
Contrast Ratio
16.000 : 1
Light source
Lamp
Lamp
UHE, 210 W, 6.000 h durability, 12.000 h durability (economy mode)
Keystone Correction
Auto vertical: ± 30 °, Manual horizontal ± 30 °
Colour Video Processing
10 Bits
2D Vertical Refresh Rate
192 Hz – 240 Hz
Colour Reproduction
Upto 1.07 billion colours
Optical
Throw Ratio
1,22 – 1,47:1
Zoom
Manual, Factor: 1,2
Lens
Optical
Screen Size
34 inches – 332 inches
Projection Distance Wide/Tele
1,62 m – 1,95 m ( 60 inch screen
Projection Lens F Number
1,49 – 1,72
Projection Lens Focal Length
16,9 mm – 20,28 mm
Projection Lens Focus
Manual
Offset
14 : 1
Connectivity
Interfaces

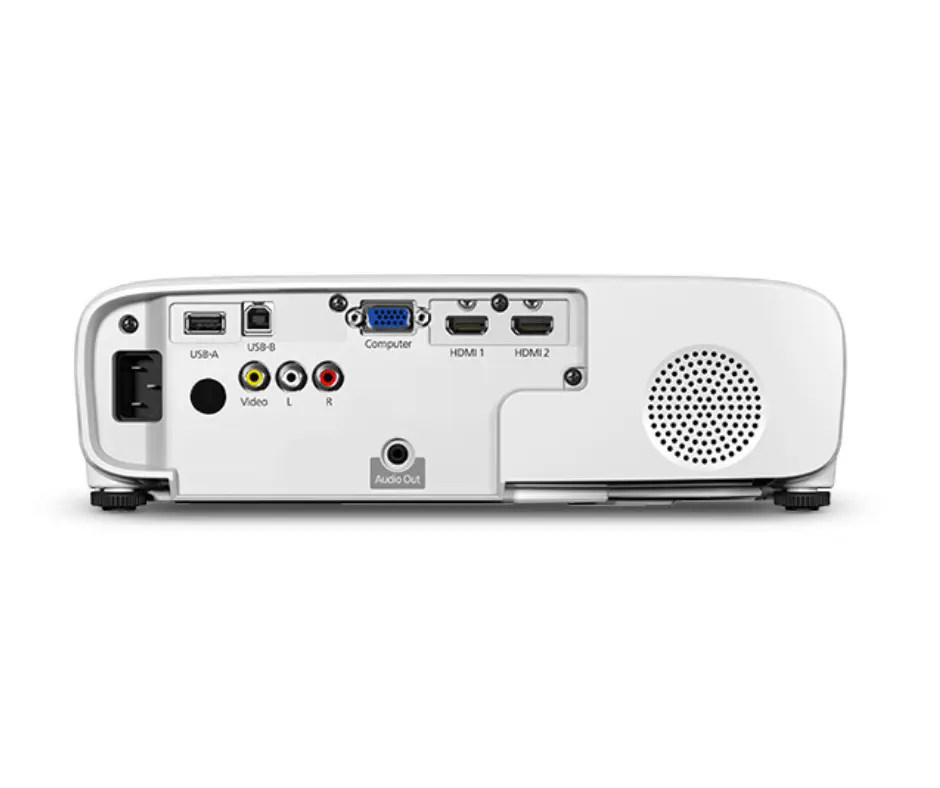

USB 2.0-A, USB 2.0, Wireless LAN IEEE 802.11b/g/n (optional), VGA in, HDMI in (2x), Composite in
Epson iProjection App
Ad-Hoc / Infrastructure
Advanced Features
Security
Kensington lock, Security cable hole, Wireless LAN unit lock, Password protection
2D Colour Modes
Dynamic, Cinema, Presentation, sRGB, Blackboard
Other features
AV Mute Slide, Auto source search, Built-in speaker, Horizontal and vertical keystone correction, Long lamp life, Quick Corner, Split-Screen-Function
Video Color Modes
Blackboard, Cinema, Dynamic, Presentation, sRGB
General
Power consumption
327 Watt, 225 Watt (economy), 0,3 Watt (standby), On mode power consumption as defined in JBMS-84 286 Watt
Supply Voltage
AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions
302 x 252 x 92 mm (Width x Depth x Height)
Product weight
2,7 kg
Noise Level
Normal: 37 dB (A) – Economy: 28 dB (A)
Supported Temperature
Operation 5° C – 35° C, Storage -10° C – 60° C
Supported Humidity
Operation 20% – 80%, Storage 10% – 90%
Included Software
Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Management, Epson Projector Professional Tool
Options
Ceiling mount, Soft carry case, Wireless LAN unit
Loudspeaker
2 Watt
What’s in the box
Computer cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD), Warranty card
Room Type / Application
Home Office, Home Photo, Sports, Streaming, TV & Box sets
Positioning
Ceiling Mounted, Desktop
Colour
White / Black
