M5-UK Features

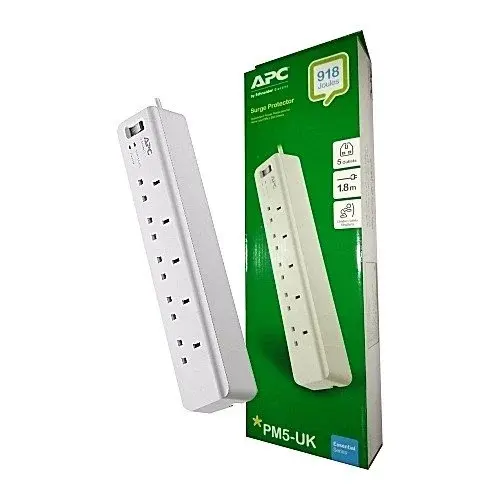

APC Essential SurgeArrest 5 outlets 230V UK
Basic Protection Against Power Surges for Computers and Electronics
Includes: User Manual
- EMI and RFI noise filtering
Reduces line noise that can cause data loss and keyboard errors.
- IEEE let–through ratings and regulatory agency compliance
APC surge protectors undergo stringent testing by IEEE and are awarded “let-through ratings”, which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers optimal performance with a let-through rating of less than 330V to 500V for North American products and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
- Protection Working Indicator
SurgeArrest will warn you if its circuitry has been damaged by a heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
Output
Number of Outlets
5.0
Receptacle Style
UK BS1363 plug
Input
Nominal Input Voltage
230V
Input frequency
50 Hz +/– 5 Hz
Input Connections
British BS1363A
Cord Length
1.83meters
Maximum Input Current
13.0A
Surge Protection and Filtering
Surge energy rating
918Joules
ts_nm_surge_response
1ns
Peak Current Common Mode
24kAmps
Peak Current Normal Mode
12kAmps
Physical
Maximum Height
55MM, 5.58CM
Maximum Width
385MM, 38.5CM
Maximum Depth
72MM, 7.26CM
Net Weight
0.67KG
Shipping weight
0.79KG
Shipping Height
58MM, 5.8CM
Shipping Width
405MM, 40.5CM
Shipping Depth
130MM, 13.0CM
Color
White
Master Carton Dimensions (Length x Width x Height)
283 x 375 x 428MM
Master Carton Units
12.0
Master Carton Weight
10.25
Units per Pallet
216.0
SCC Codes
1073130431388 2
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 90 %
Operating Elevation
0-3000meters
Storage Temperature
-5 – 40 °C
Storage Relative Humidity
0 – 95% non-condensing %
Storage Elevation
0–15000meters
