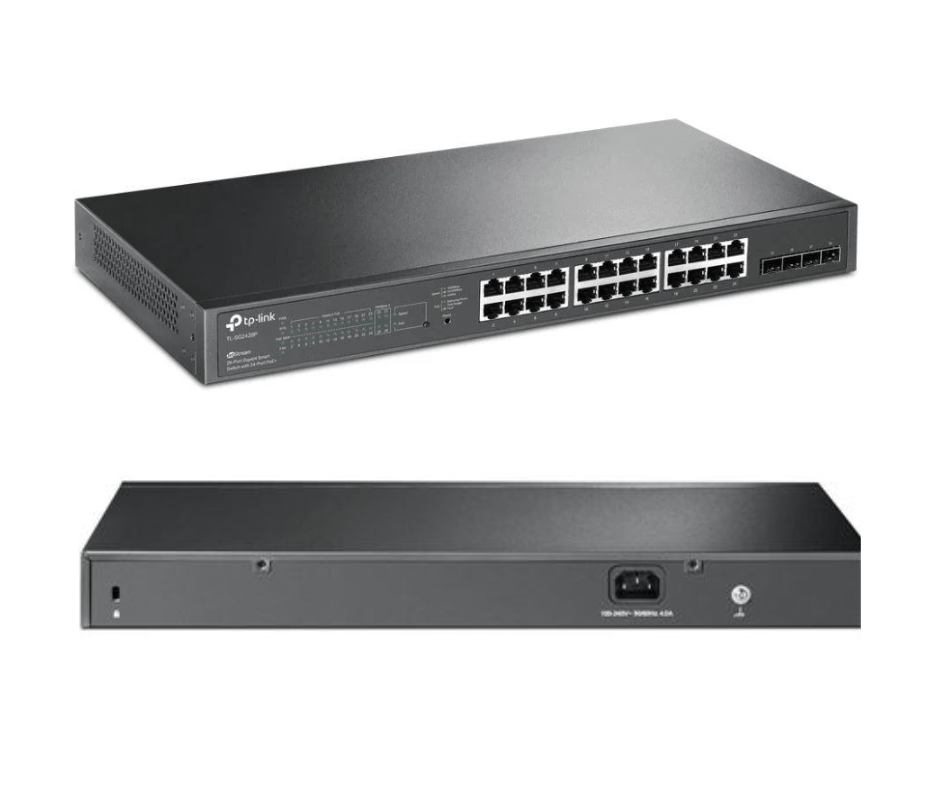

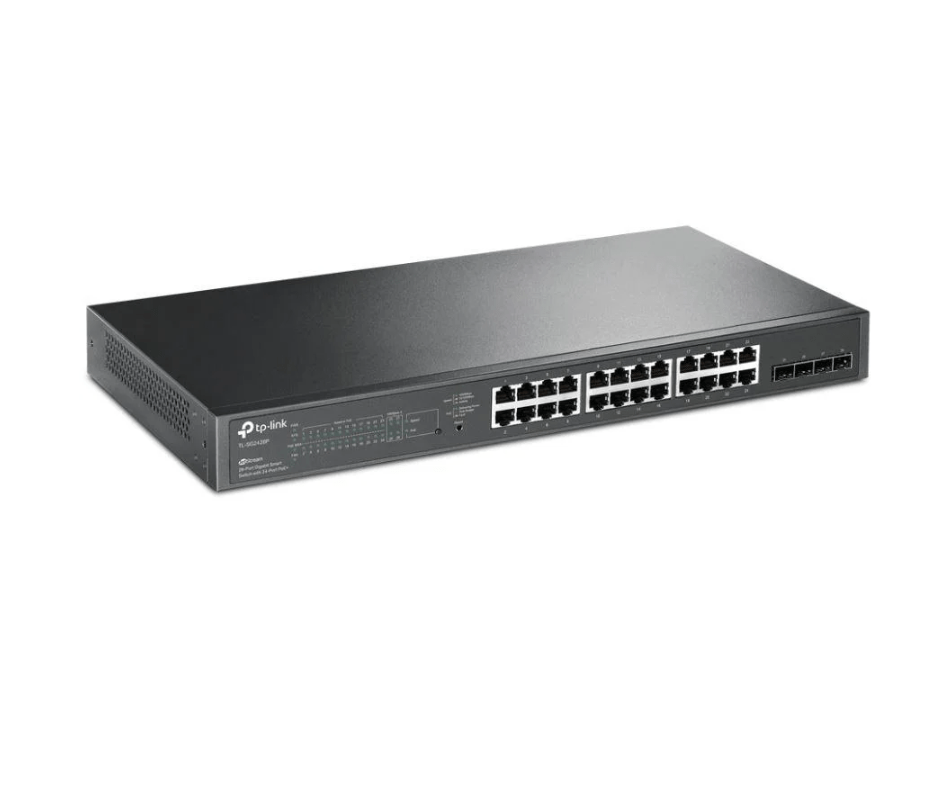

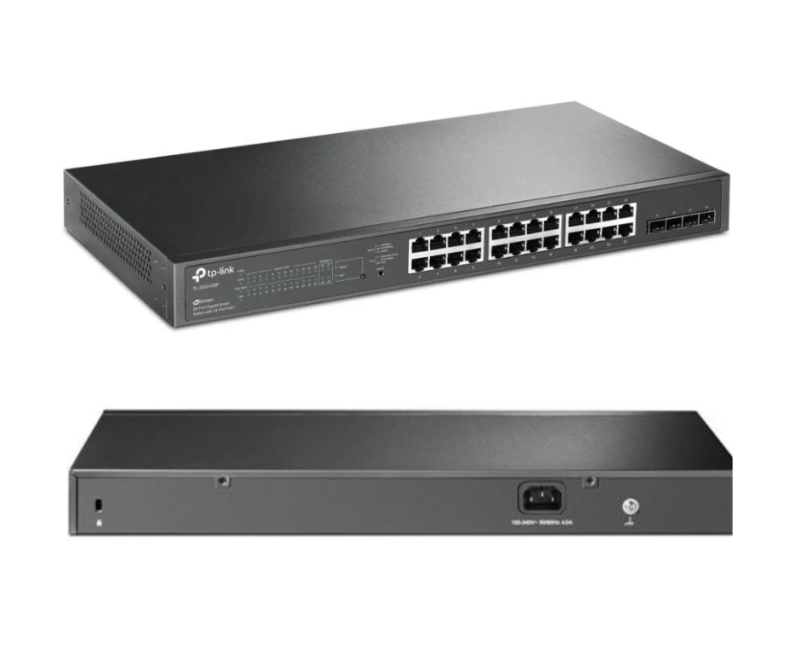

TP-Link TL-SG2428P Jetstream 28-Port Gigabit Smart Switch 24-Port PoE

TP-Link TL-SG2428P Jetstream 28-Port Gigabit Smart Switch 24-Port PoE

Description

• 250 W PoE Budget: 24x 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
• Full Gigabit Ports: 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• IPv6:  IPV6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.


  TP-Link TL-SG2428P Jetstream 28-Port Gigabit Smart Switch specifications

  • Switch Type:
    • 24-Port Gigabit Smart PoE Switch
  • PoE Ports:
    • 24 x Gigabit PoE+ Ports
    • PoE Power Budget: Up to 180W
  • SFP Ports:
    • 4 x SFP Slots for Fiber Uplinks
  • Switching Capacity:
    • 48 Gbps
  • Max Forwarding Rate:
    • 35.7 Mpps
  • Layer:
    • Layer 2+ Features
  • VLAN Support:
    • Supports IEEE 802.1Q with 4,096 VLANs
  • Quality of Service (QoS):
    • Supports 8 priority queues
    • QoS based on IEEE 802.1p/DSCP/TCP/UDP
  • Security Features:
    • IP-MAC-Port-VID Binding
    • Access Control Lists (ACL)
    • 802.1X Authentication
  • Management:
    • Web-based Graphical User Interface (GUI)
    • Command Line Interface (CLI)
    • SNMP v1/v2c/v3
    • RMON (1, 2, 3, 9)
    • SSH/SSL
  • Power Supply:
    • 100-240VAC, 50/60Hz
  • Power Consumption:
    • Maximum: 230W (PoE on)
    • Maximum: 22.7W (PoE off)
  • Dimensions:
    • 17.32 x 8.70 x 1.73 inches (440 x 220 x 44 mm)
  • Weight:
    • 6.83 pounds (3.1 kg)
  • Operating Temperature:
    • 0°C to 40°C (32°F to 104°F)
  • Operating Humidity:
    • 10% to 90% non-condensing
  • Certifications:
    • CE, FCC, RoHS
  • Package Contents:
    • TL-SG2424P Smart PoE Switch
    • Power Cord
    • Installation Guide
    • Resource CD
    • Rackmount Kit
