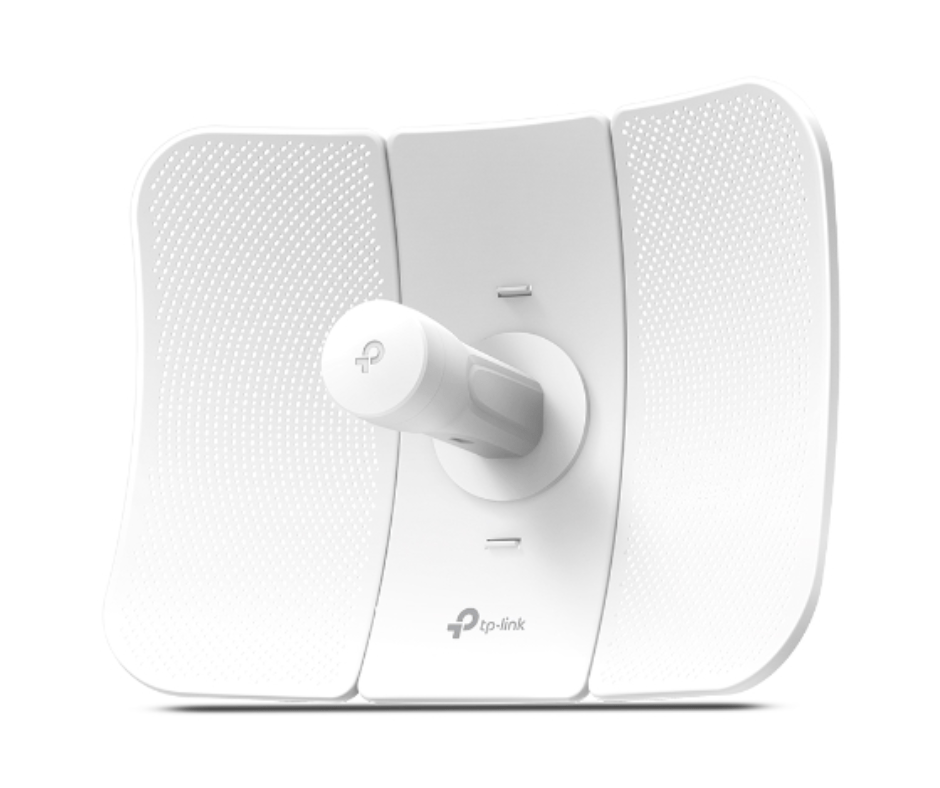

TP-link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Access Point

This access point features a 23 dBi high-gain directional 2×2 MIMO Cassegrain antenna and the dedicated metal reflector for impressive network extension, a Stable Structural Design to withstand windy conditions, and a Pharos Control Centralized Management System to manage various functions through one PC.

This access point is ideal for long-range wireless transmission, thanks to its 23 dBi high-gain directional 2×2 MIMO Cassegrain antenna and the dedicated metal reflector. Together, they offer impressive beam directivity, noise immunity, and improved latency. Thus, it is ideal for your outdoor wireless networking applications.

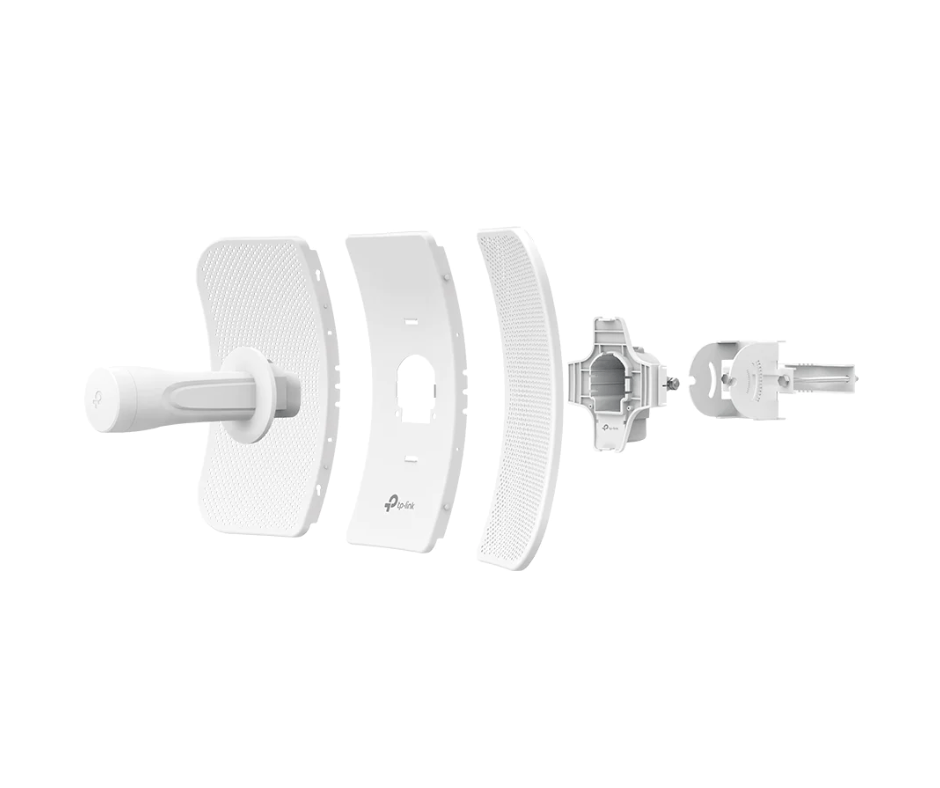

This is an easy-to-install access point that comes with snap-lock parts that you can easily assemble. Also, the pole mount kits, along with the three-axis alignment, allow flexible installation. The stable structural design ensures that it can withstand strong winds.

TP-link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Access Point specifications

General:

• Wireless Standard: IEEE 802.11a/n
• Frequency Band: 5GHz
• Transmission Power: Up to 27dBm
• Operating Modes: AP / Client / Repeater / AP Router / AP Client Router (WISP Client Router)
• PoE Injector: Included
• Dimensions: 13.0 x 3.1 x 2.6 inches (329 x 78 x 67 mm)
• Mounting: Pole or wall mountable

Data Rates:

• Wireless Data Rates: Up to 300Mbps
• Maximum Range: Up to 5 miles (8 kilometers)

Antennas:

• Built-in High-Gain Directional Antenna: 23dBi

Protection:

• Protection: 15KV ESD Protection
• IPX5 Weatherproof Housing: Protects against harsh outdoor conditions

Wireless Security:

• Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption
• SSID Broadcast Control: Support

Management:

• Management Tools: Pharos Control Center
• Remote Management: Supports remote monitoring and management

Advanced Features:

• Wireless Modes: AP Router, AP Client Router, AP, Client, Repeater, Bridge, Client Router
• Pharos MAXtream TDMA (Time-Division-Multiple-Access): Improves network performance in Point-to-Multi-Point (PtMP) scenarios
• Passive PoE Adapter: Supports up to 60 meters of deployment (Ethernet and PoE in one cable)
• Pharos Control: Provides centralized management for efficient network control
• Load Balance: Selects the best channel based on the signal levels of all CPE devices
• WISP Client Router (WCR): Manages and secures network access
